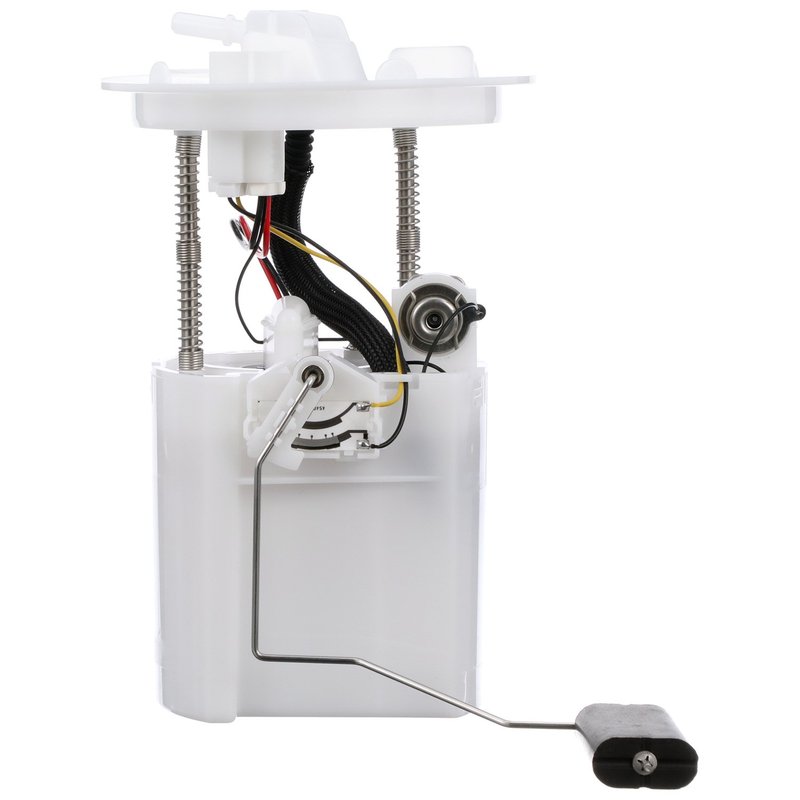

Delphi FG1531 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1531 fuel pump module assembly is designed specifically for Ford Focus vehicles, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Compatible with Ford Focus models
• 12.0 Volt electric pump with 4 blade terminals
• Includes internal fuel level sender assembly with float arm
• Maximum pressure rating of 90 psi and system pressure of 75 psi
• Internal strainer inlet and quick connect outlet (0.313 inch diameter)
• Average flow rating of 30 liters per hour and average current draw of 9 amps
• Regulator included for stable fuel pressure
• Standard replacement grade part

Technical Details and Features

The Delphi FG1531 fuel pump module assembly operates at 12 volts and features a blade terminal type with four male terminals for secure electrical connections. It includes an internal strainer inlet to prevent debris from entering the fuel system and a quick connect outlet with a 0.313-inch outside diameter for easy installation. The module is designed to maintain a system pressure of 75 psi, with a maximum pressure capacity of 90 psi, ensuring consistent fuel delivery under various driving conditions. The fuel level sender assembly with float arm is integrated, providing accurate fuel level readings to the vehicle’s gauge. This electric pump module is compatible with flex fuel types, making it suitable for vehicles running on ethanol blends.

Applications and Problem Solving

• Replaces faulty or failing fuel pump modules in Ford Focus vehicles
• Resolves issues with inconsistent fuel pressure or flow
• Corrects inaccurate fuel level readings caused by damaged sender units
• Eliminates fuel delivery interruptions due to clogged strainers or worn pumps
• Supports flex fuel compatibility for ethanol-blended fuels

Installation Notes and Tips

Installation of the Delphi FG1531 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the electrical connections match the four blade terminals and verify the quick connect outlet fits securely with the fuel line. Since the module does not include a gasket or lock ring, reuse the original components or source replacements as needed. Follow all safety precautions when working with fuel systems, including depressurizing the fuel system before removal.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford Focus vehicles. It includes a fuel level sender assembly and internal strainer to maintain system integrity. While specific warranty details are not provided, Delphi parts typically come with manufacturer-backed quality assurance to ensure reliable operation and durability.
