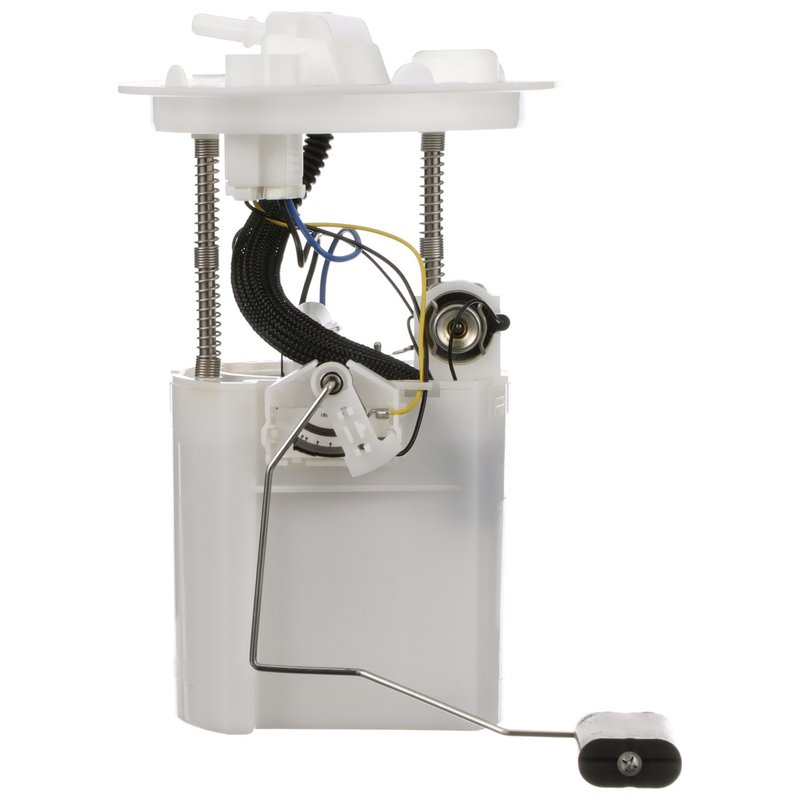

Delphi FG1532 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG1532 Fuel Pump Module Assembly

Brand Delphi FG1532
Average Current Draw 9
Average Flow Rating 21
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included No
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 84.0
Outlet Outside Diameter 0.313
Outlet Quantity 1
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 464.0
Resistance Ohms Full 50.0
Strainer Included Yes
System Pressure 77 psi
Terminal Gender Male
Terminal Quantity 4
Terminal Type Blade
Vapor Pressure Sensor No
Voltage 12.0
Fits Ford · 10 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

OE heritage. Built with 100 years of OE experience and supplier knowledge.

Complete module. Includes a fuel level sender, strainer, and regulator.

Cross-references Bosch 66028, Carter P76863M and Spectra Premium SP2516M for the same application. See all 12.

$205.86Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $205.86
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Fuel Pump Module Assembly for Ford Focus

The Delphi FG1532 fuel pump module assembly is a standard replacement for select 2012-2018 Ford Focus models. It combines the in-tank electric pump, fuel level sender assembly, regulator, and strainer in one service unit for gasoline applications.

  • Fits 2012-2018 Ford Focus
  • In-tank electric fuel pump module for gas engines
  • Includes fuel level sender assembly and regulator
  • Quick-connect outlet with blade terminals
  • Internal strainer included
  • 12-volt system with 77 psi system pressure and 84 psi maximum pressure
  • Standard replacement part number FG1532

OE-Style Fuel Delivery Design

Delphi FG1532 is built from OE heritage and application knowledge developed through long-term supplier experience with major automakers. For Ford Focus fuel system service, this module supports consistent fuel delivery, accurate tank level reporting, and proper pressure regulation in a direct replacement format. The FG1532 is also referenced by cross numbers such as Bosch 66028 and Carter P76863M for the same application.

What This Part Helps Address

  • Hard starting caused by weak fuel pressure
  • Engine hesitation or stalling from inconsistent fuel delivery
  • Fuel gauge readings that are inaccurate or unstable
  • Low pump output in an in-tank gasoline system
  • Fuel system service needs on 2012-2018 Ford Focus models

Installation Notes

Fits 2012-2018 Ford Focus. Clean the fuel tank before installing the fuel pump to help prevent future seal problems. This module is designed for in-tank installation and uses a quick-connect outlet, so verify connector style, terminal layout, and fuel system specifications before installation. The package includes the fuel pump module assembly with float arm, seal, and instruction sheet.

Quality Assurance

Delphi draws on more than a century of OE experience and a broad aftermarket portfolio covering many vehicle applications. FG1532 is a standard replacement fuel pump module assembly engineered for gasoline fuel systems and OE-style service requirements.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelFuel TypePositionNotes
2018FordFocus—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2017FordFocusGASN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2017FordFocus—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2016FordFocusGASN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2016FordFocus—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2015FordFocusGASN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2015FordFocus—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2014FordFocusGASN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2013FordFocusGASN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2012FordFocusGASN/AClean fuel tank before installing fuel pump to prevent future seal problems.
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 66028Carter — P76863MSpectra Premium — SP2516MA46008BV6Z 9H307-AVBV6Z 9H307-HBV6Z 9H307-PBV6Z 9H307-UCFG1532E2592MPFS-990PFS-1092
