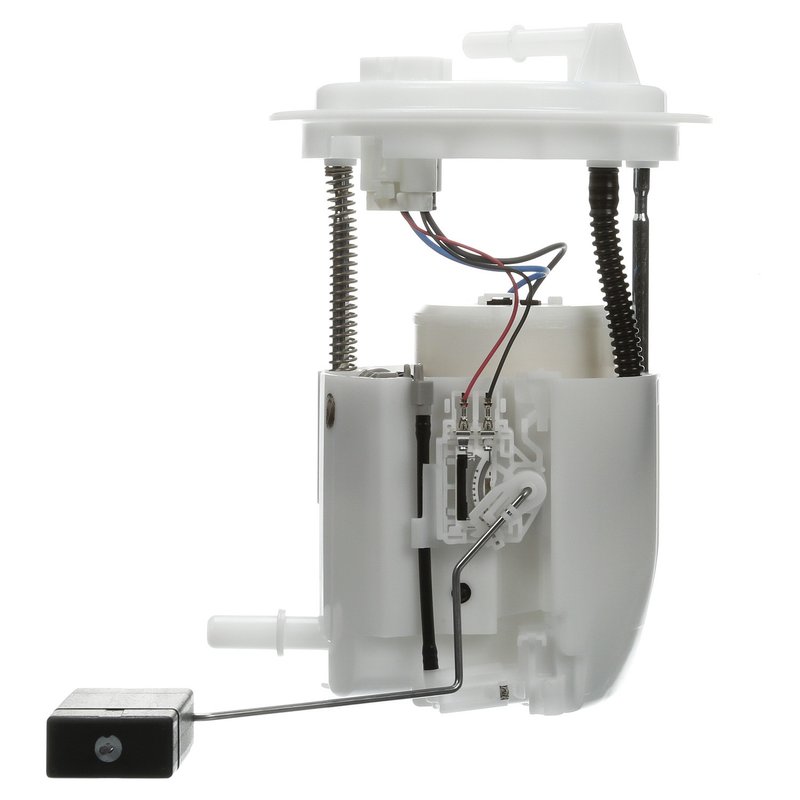

Delphi FG1536 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge and Jeep Vehicles

The Delphi FG1536 fuel pump module assembly is designed to provide consistent fuel delivery for Dodge Caliber, Jeep Compass, and Jeep Patriot models. This in-tank electric fuel pump ensures optimal performance and fuel efficiency for gasoline engines.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter for easy hose attachment
• Designed for gas fuel type with a maximum pressure rating of 109 psi
• Blade-type male terminals with four connections for reliable electrical contact
• Average flow rating of 26 liters per hour and system pressure of 58 psi
• Standard replacement grade with included float arm and instruction sheet

Technical Details and Features

The Delphi FG1536 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Dodge Caliber, Jeep Compass, and Jeep Patriot vehicles. It features an internal strainer inlet and a quick connect outlet designed for a 0.375 inch outside diameter fuel line. The pump includes a built-in regulator to maintain system pressure up to 109 psi, ensuring consistent fuel delivery. The assembly comes with a gasket and strainer to prevent contaminants from entering the fuel system. Electrical connections are made via four blade-type male terminals, supporting stable current flow with an average draw of 8 amps. The fuel level sender assembly is integrated, providing accurate fuel gauge readings. This module is intended as a standard replacement part, matching OEM specifications for reliable operation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Dodge Caliber (gasoline engines)
• Jeep Compass (gasoline engines)
• Jeep Patriot (gasoline engines)

It is designed specifically for in-tank installation, making it suitable for fuel delivery and fuel level sensing in these models.

Common Issues Addressed by the Delphi FG1536

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pressure fluctuations affecting engine performance
• Contaminated fuel causing pump or injector damage
• Electrical connection failures leading to pump malfunction

Installation Notes and Tips

When installing the Delphi FG1536 fuel pump module assembly, ensure the following:

• Disconnect the vehicle battery before beginning to prevent electrical hazards
• Relieve fuel system pressure to avoid fuel spray during removal
• Use the included gasket to create a proper seal and prevent leaks
• Verify the orientation of the float arm and fuel level sender for accurate readings
• Check all electrical connections for secure fitment of the four blade terminals
• Follow the vehicle manufacturer’s service manual for specific removal and installation procedures
