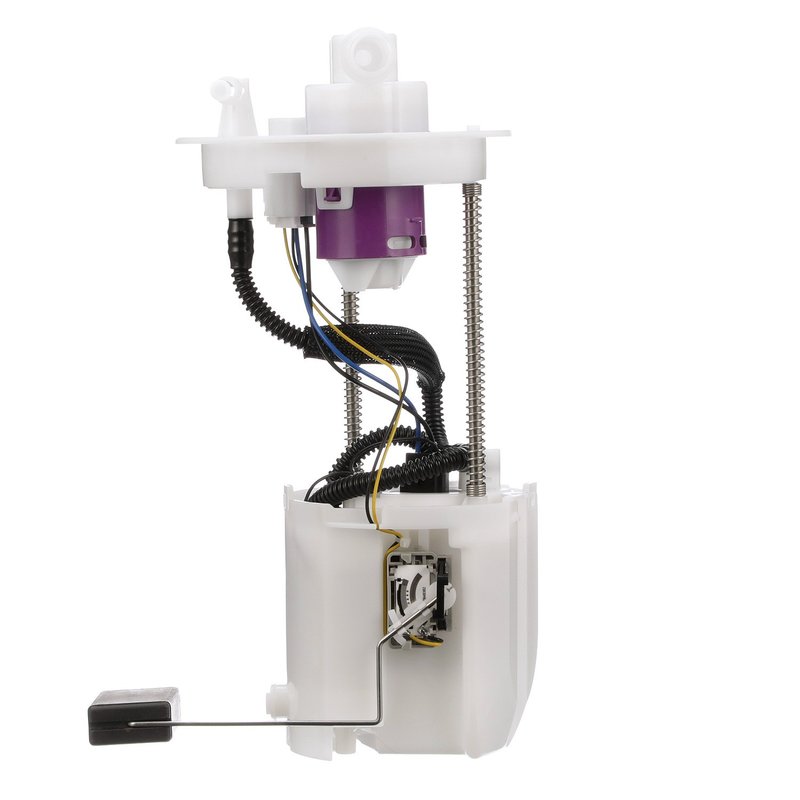

Delphi FG1546 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura and Honda Vehicles

The Delphi FG1546 fuel pump module assembly is designed specifically for Acura and Honda models, including the Civic and ILX. This in-tank electric fuel pump ensures consistent fuel delivery and pressure for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 95 psi and system pressure of 58 psi
• Quick connect outlet with 0.375 inch outside diameter
• Includes gasket, lock ring, and internal strainer for secure installation
• Blade-type male terminals with four connections
• Average flow rating of 50 and average current draw of 10 amps

Technical Details and Features

The Delphi FG1546 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet to facilitate efficient fuel flow. The module includes a regulator to maintain consistent fuel pressure up to 95 psi, supporting system pressure at 58 psi. The assembly comes with a gasket, lock ring, and internal strainer to ensure a secure and leak-free fit within the fuel tank. The four blade-type male terminals provide reliable electrical connections, while the included fuel level sender assembly with float arm allows accurate fuel level readings. This standard replacement part offers resistance values of 780 ohms when empty and 20 ohms when full, ensuring compatibility with the vehicle's fuel gauge system.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with select Acura and Honda models, specifically the Civic and ILX. It is designed to replace the original equipment fuel pump module in these vehicles, restoring proper fuel delivery and pressure regulation.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate gauge readings
• Fixes fuel pump noise or failure symptoms
• Eliminates fuel leaks caused by worn seals or gaskets

Installation Notes and Tips

Installation of the Delphi FG1546 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is parked on a level surface and the battery is disconnected before beginning. Use the included lock ring and gasket to secure the module and prevent leaks. Verify all electrical connections are clean and properly seated on the blade terminals. It is recommended to inspect the fuel tank for debris and clean as necessary before installing the new module. Follow vehicle-specific service manual instructions for safe and correct installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable operation. The FG1546 comes with a limited warranty covering defects in materials and workmanship, providing confidence in its long-term performance for Acura and Honda Civic and ILX owners.
