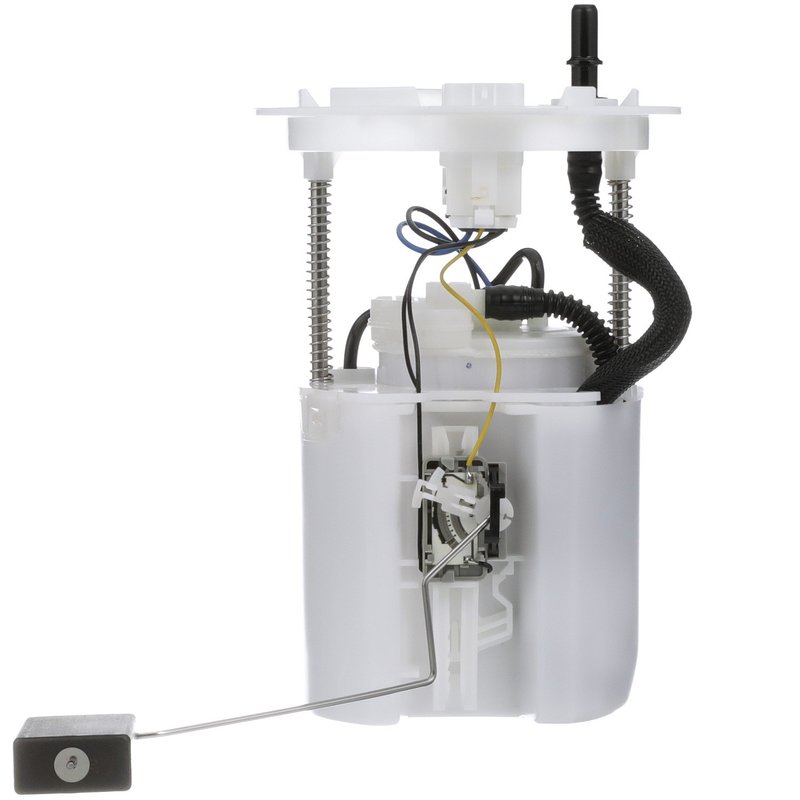

Delphi FG1547 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1547 fuel pump module assembly is designed for reliable fuel delivery in select Ford and Lincoln vehicles. Engineered as an in-tank electric fuel pump, it supports gas fuel systems with integrated components to maintain consistent pressure and flow.

• Compatible with Ford Fusion and Lincoln MKZ models
• 12.0-volt electric pump with a maximum pressure of 84 psi
• Includes fuel level sender assembly and internal strainer
• Quick connect outlet with 0.375-inch outside diameter
• Blade-type male terminals with four connections
• Regulator included for stable fuel pressure at 77 psi system pressure
• Average flow rating of 18 gallons per hour and 10 amps current draw

Technical Details and Features

The Delphi FG1547 fuel pump module assembly is a standard replacement part designed for in-tank installation. It features an internal strainer inlet type to filter fuel before delivery, helping to protect the fuel system. The pump operates at 12 volts and delivers a maximum pressure of 84 psi, with a regulated system pressure of 77 psi to ensure optimal engine performance. The outlet is a quick connect type with a 0.375-inch outside diameter, facilitating straightforward installation and secure fuel line connection.

This module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The electrical connections use four blade-type male terminals, supporting reliable power and signal transmission. Resistance values range from 180 ohms when empty to 10 ohms when full, ensuring precise fuel level measurement. The pump’s average current draw is 10 amps, with an average flow rating of 18 gallons per hour, suitable for the fuel demands of the Ford Fusion and Lincoln MKZ.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Fusion (gasoline models)
• Lincoln MKZ (gasoline models)

It is designed to address common fuel system issues such as:

• Fuel delivery interruptions or inconsistent fuel pressure
• Faulty fuel level readings or sender assembly failures
• Fuel pump noise or electrical failures
• Reduced engine performance due to inadequate fuel flow
• Fuel contamination caused by damaged or missing strainers

Installation Notes and Tips

Installation of the Delphi FG1547 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure to avoid leaks. Since the gasket or seal is not included, reuse the original seal or obtain a compatible replacement to maintain proper sealing. Follow the included instruction sheet carefully for proper installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1547 is a standard replacement grade part, designed to provide reliable operation within the specified parameters. While specific warranty details are not provided here, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or Delphi’s official resources for exact warranty terms.
