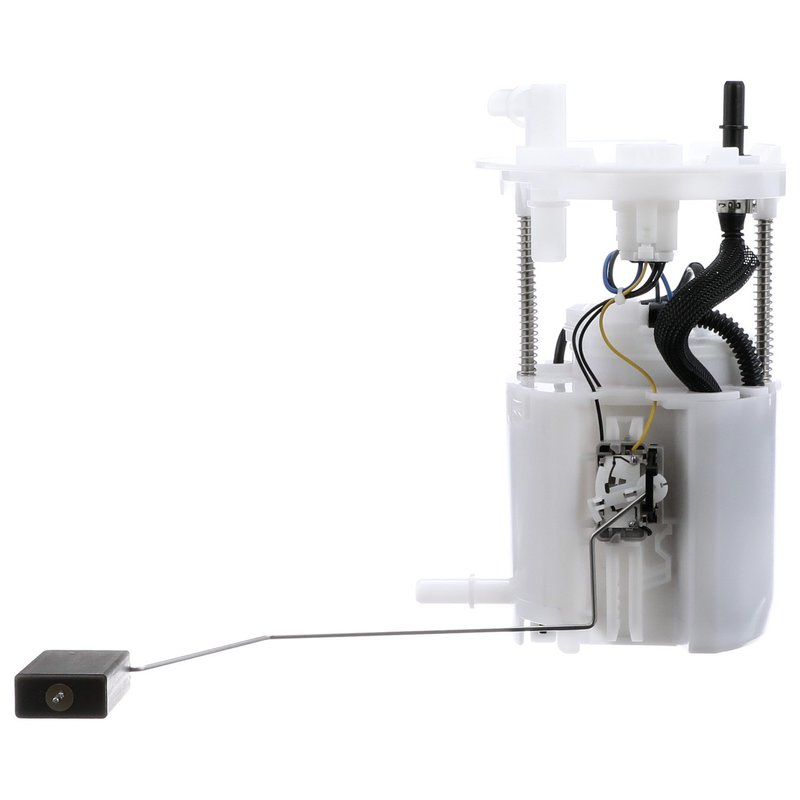

Delphi FG1551 Fuel Pump Module Assembly - Right

Delphi FG1551 Fuel Pump Module Assembly Overview

The Delphi FG1551 fuel pump module assembly is designed specifically for Ford Explorer models, providing reliable in-tank fuel delivery for gasoline engines. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Ford Explorer vehicles
• 12.0 Volt electric fuel pump with integrated regulator
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Maximum pressure rating of 64 psi and system pressure of 58 psi
• Blade-type terminals, 4 male terminals for secure electrical connection
• Average flow rating of 29 and average current draw of 10 amps
• Standard replacement grade for dependable operation

Technical Details and Features

The Delphi FG1551 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel level readings. The regulator is integrated to maintain a maximum pressure of 64 psi and a system pressure of 58 psi, ensuring consistent fuel delivery under various operating conditions. The pump uses blade-type male terminals with four connections, providing a secure and reliable electrical interface. This in-tank electric pump has an average flow rating of 29 and draws approximately 10 amps during operation.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Ford Explorer gasoline engines
• Resolves issues with inconsistent fuel pressure or flow
• Corrects inaccurate fuel level readings due to faulty sender assemblies
• Eliminates electrical connection problems with blade terminal design
• Addresses fuel delivery interruptions caused by clogged strainers

Installation Notes and Tips

Installation of the Delphi FG1551 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the electrical connections match the blade-type male terminals and verify the quick connect outlet fittings are secure. The module does not include a gasket or lock ring, so reuse existing components or source replacements as needed. Follow all safety precautions when working with fuel systems, including depressurizing the fuel system before removal.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement grade part designed to meet OEM specifications for Ford Explorer vehicles. It includes a fuel level sender assembly and internal strainer to maintain system integrity. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to the product documentation or manufacturer for specific warranty details.
