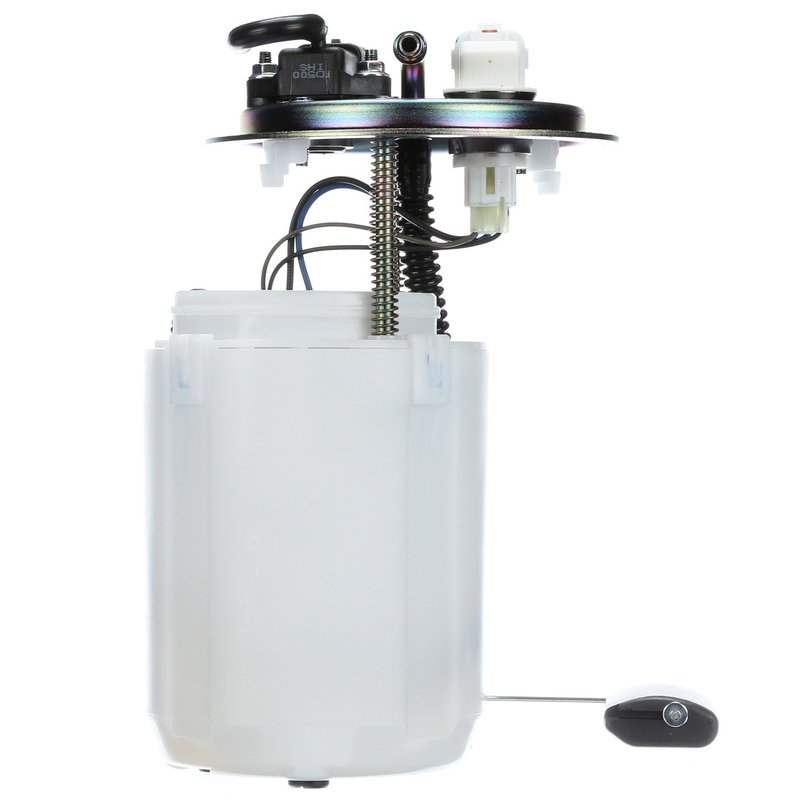

Delphi FG1559 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Hyundai and Kia Vehicles

The Delphi FG1559 fuel pump module assembly is designed to provide consistent fuel delivery for select Hyundai and Kia models. Engineered for gas-powered vehicles, this in-tank electric fuel pump module ensures optimal performance and fuel system reliability.

• Compatible with Hyundai Entourage and Kia Sedona models
• 12-volt electric pump with a maximum pressure of 95 psi
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.313 inch outside diameter
• Blade-type male terminals with 5-terminal configuration
• Regulator and vapor pressure sensor included for precise fuel management
• Average flow rating of 50 liters per hour and system pressure of 55 psi

Technical Details and Features

The Delphi FG1559 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy installation. The pump’s blade-type male terminals include five connections, supporting reliable electrical contact. This module also incorporates a fuel level sender assembly with resistance values ranging from 8 ohms (full) to 200 ohms (empty), enabling accurate fuel gauge readings. The included regulator maintains system pressure at 55 psi, while the vapor pressure sensor helps monitor fuel vapor conditions to support emissions control.

Applications and Problem Resolution

• Restores proper fuel delivery in Hyundai Entourage and Kia Sedona vehicles
• Resolves fuel pressure inconsistencies and engine performance issues
• Addresses fuel gauge inaccuracies with integrated sender assembly
• Eliminates fuel pump noise and intermittent operation problems
• Supports emission system functionality through vapor pressure sensing

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation. Ensure the fuel tank is properly drained and cleaned before replacement. Handle the quick connect outlet carefully to avoid damage during connection. Verify terminal connections match the vehicle’s wiring harness to prevent electrical issues. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

Delphi manufactures the FG1559 fuel pump module assembly to meet standard replacement quality requirements. The product includes a fuel pump module assembly with float arm and an instruction sheet for reference. While no specific warranty details are provided, Delphi products typically adhere to industry standards for durability and performance.
