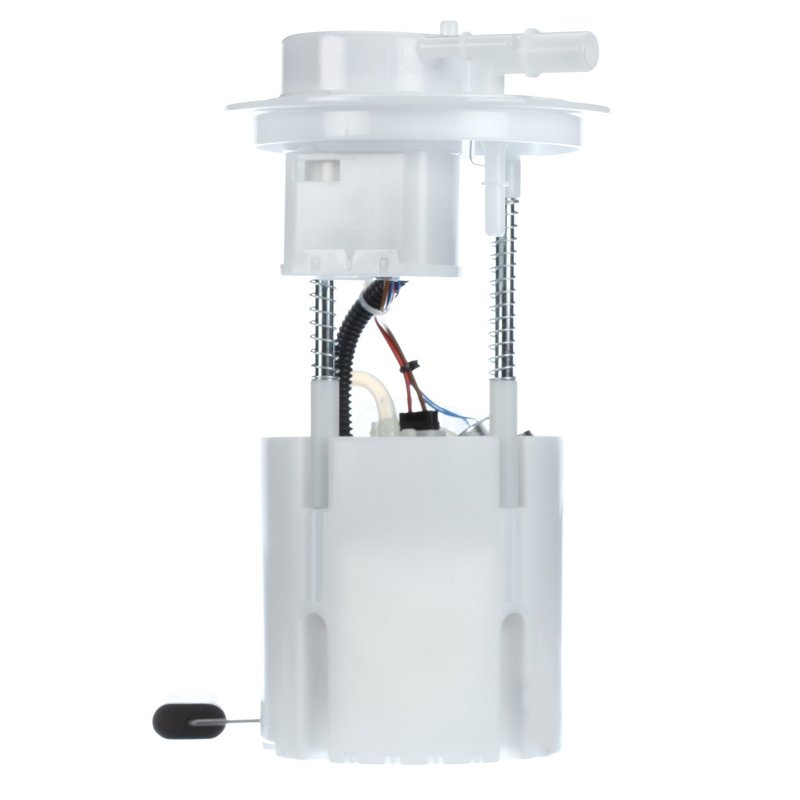

Delphi FG1560 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1560 Fuel Pump Module Assembly is designed for reliable fuel delivery in select Chrysler, Dodge, and Jeep vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance in models like the 200, Cherokee, and Dart.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems operating at 12 volts
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.313 inch outside diameter and three outlets
• Blade-type male terminals with four connections for secure wiring
• Designed for system pressure of 58 psi and maximum pressure of 138 psi
• Average flow rating of 55 and average current draw of 10 amps

Technical Details and Features

The Delphi FG1560 fuel pump module assembly is engineered to meet the fuel delivery requirements of specific Chrysler, Dodge, and Jeep models. Operating at 12 volts, this electric pump features an internal strainer inlet and a quick connect outlet type, facilitating efficient fuel flow and easy installation. The module includes a fuel level sender assembly with resistance values ranging from 50 ohms (full) to 990 ohms (empty), providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a leak-free fit, and the blade-type male terminals with four connections support reliable electrical contact. The pump maintains a system pressure of 58 psi and can handle a maximum pressure of 138 psi, suitable for standard gasoline fuel systems.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Chrysler 200
• Dodge Dart
• Jeep Cherokee

It is designed as a standard replacement part for in-tank fuel delivery systems in these vehicles, ensuring proper fuel pressure and flow for engine operation.

Common Issues Addressed by the Delphi FG1560

• Fuel delivery interruptions causing engine stalling or hesitation
• Inaccurate fuel level readings due to faulty sender assemblies
• Leaks or poor sealing in the fuel pump module area
• Electrical connection failures from worn or damaged terminals
• Reduced fuel pressure affecting engine performance

Installation Notes and Tips

When installing the Delphi FG1560 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The included gasket or seal must be properly seated to prevent leaks. Verify that the blade-type male terminals are securely connected to avoid electrical issues. The quick connect outlet facilitates straightforward hose attachment, but confirm all connections are tight. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures to maintain safety and performance standards.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This FG1560 assembly is a standard replacement grade part designed for durability and consistent operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
