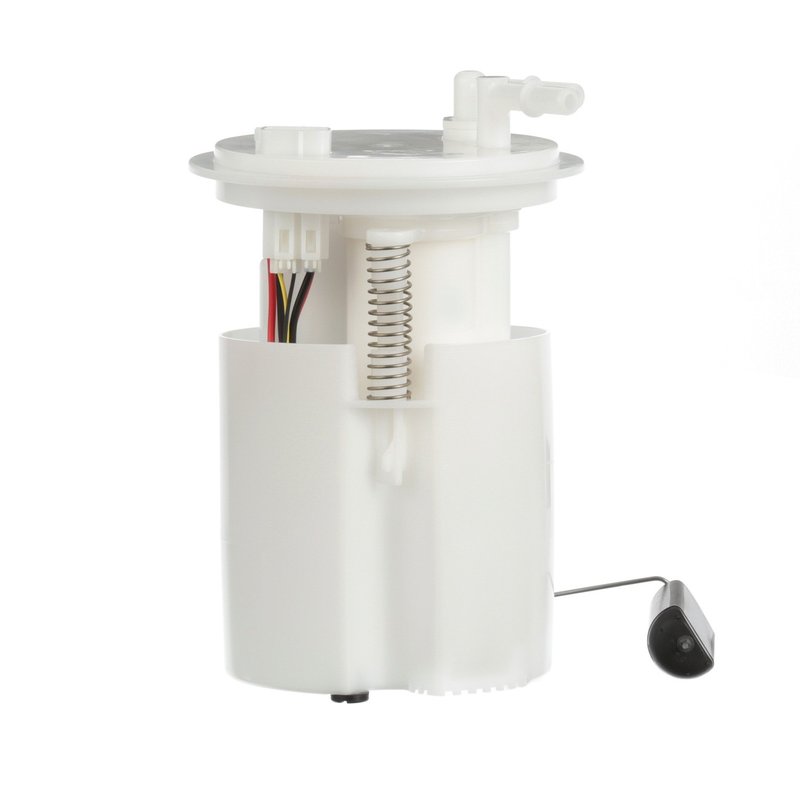

Delphi FG1566 Fuel Pump Module Assembly
| Brand | Delphi FG1566 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 27 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 139.0 |
| Resistance Ohms Full | 9.0 |
| Strainer Included | Yes |
| System Pressure | 51 psi |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Subaru · 4 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Electric pump. Delivers consistent fuel flow with a built-in regulator and sender.
OE heritage. Backed by decades of original-equipment experience and know-how.
Cross-references Spectra Premium SP4086M, 42021 AJ230 and A30503 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Subaru Legacy and Outback
Delphi FG1566 is a fuel pump module assembly for select 2013-2014 Subaru Legacy and 2013-2014 Subaru Outback applications. It combines an electric in-tank pump, fuel level sender assembly, and regulator in a standard replacement design for gasoline systems.
Key Features
- Fits 2013-2014 Subaru Legacy and 2013-2014 Subaru Outback
- In-tank electric fuel pump module for gasoline fuel systems
- Fuel level sender assembly included
- Regulator included for system control
- Quick-connect outlet design with two outlets
- Strainer included with internal strainer design
- 12-volt operation with blade terminals and 6-terminal connection
- Maximum pressure rating of 80.0 and system pressure of 51 psi
- Standard replacement part number FG1566
Detailed Description
Delphi FG1566 is built as a direct-style fuel pump module assembly for Subaru Legacy and Subaru Outback models listed above. It is an in-tank electric unit for gas applications and includes the fuel level sender assembly, regulator, and strainer to support fuel delivery and tank level reporting in one assembly. Delphi draws on OE experience and supplier knowledge developed over decades of original-equipment work, which is reflected in the design and application coverage of this replacement module. This part cross-references Spectra Premium SP4086M for the same application.
What It Helps Fix
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge readings that are inaccurate or erratic
- Loss of pressure under load or during acceleration
- Fuel pump noise or intermittent pump operation
Installation Notes and Tips
Before installing this fuel pump module assembly, clean the fuel tank to help prevent future seal problems, as noted for the listed Subaru applications. Verify connector style, outlet type, and system pressure requirements before installation. Because this unit uses an in-tank design with quick-connect outlets and blade terminals, confirm the vehicle’s original configuration matches the part specifications. Delphi FG1566 is listed for 2013-2014 Subaru Legacy and 2013-2014 Subaru Outback fitment.
Quality Assurance
Delphi builds this replacement fuel pump module using OE-based engineering knowledge and application coverage developed from long-term original-equipment supply experience. FG1566 is a standard replacement fuel delivery component for the specified Subaru Legacy and Outback models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Subaru | Legacy | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2014 | Subaru | Outback | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2013 | Subaru | Legacy | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2013 | Subaru | Outback | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
