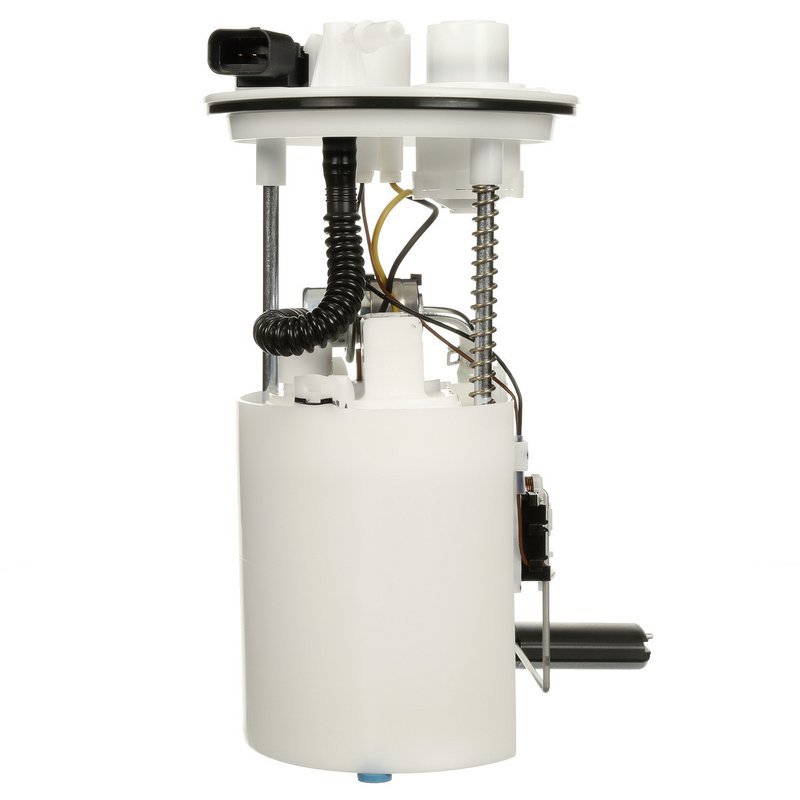

Delphi FG1568 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Kia Forte and Forte Koup

The Delphi FG1568 fuel pump module assembly is designed specifically for Kia Forte and Forte Koup models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

Key Features of Delphi FG1568 Fuel Pump Module

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer and external quick connect outlet for efficient fuel flow
• Maximum system pressure of 51 psi with a regulated pressure of 49 psi
• Four male blade terminals for secure electrical connections
• Compatible with gasoline fuel type
• Includes gasket and seal for leak-free installation
• Average flow rating of 32 liters per hour and average current draw of 8 amps
• Vapor pressure sensor integrated for emission control

Detailed Description of the Delphi FG1568 Fuel Pump Module

The Delphi FG1568 is a standard replacement fuel pump module assembly engineered for Kia Forte and Forte Koup vehicles. This in-tank electric pump features a 0.313-inch outlet outside diameter and quick connect outlet type with two outlets to support efficient fuel delivery. The module includes an internal strainer to prevent debris from entering the fuel system, enhancing longevity and reliability. The fuel pump operates at 12 volts and maintains a system pressure of 49 psi, with a maximum pressure rating of 51 psi, ensuring consistent fuel supply under various driving conditions. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. Four male blade terminals facilitate secure electrical connections, and the included gasket and seal help maintain a tight, leak-free fit during installation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Kia Forte and Forte Koup
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions caused by clogged strainers or filters
• Eliminates vapor pressure sensor faults affecting emission system performance

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Use the included gasket and seal to prevent fuel leaks and maintain system integrity
• Verify correct orientation of the fuel level sender float arm for accurate fuel readings
• Check all electrical connections on the four blade terminals for secure fit
• Follow vehicle-specific service manual instructions for safe removal and installation

Quality Assurance and Warranty Information

The Delphi FG1568 fuel pump module assembly is manufactured to meet OEM specifications for Kia Forte and Forte Koup models. It undergoes rigorous testing to ensure reliable performance and durability. This product is offered as a standard replacement part and includes a limited warranty against defects in materials and workmanship, providing confidence in its quality and longevity.
