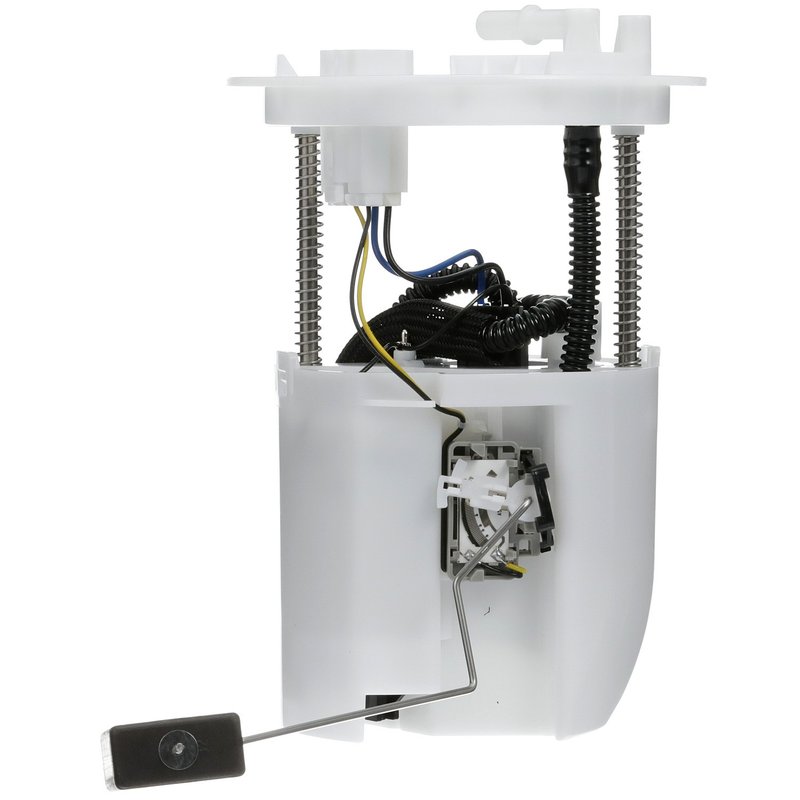

Delphi FG1582 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1582 fuel pump module assembly is designed specifically for Mazda 6 vehicles, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Compatible with Mazda 6 models
• 12.0 Volt electric pump with 50 GPH average flow rating
• Includes internal strainer and fuel level sender assembly
• Maximum system pressure of 61 psi with regulator included
• Blade-type male terminals with 4-terminal quantity
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade with included seal and instruction sheet

Technical Details and Features

The Delphi FG1582 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, ensuring efficient fuel flow and filtration. The pump maintains a system pressure of 58 psi and a maximum pressure rating of 61 psi, regulated internally for consistent performance. The module includes a fuel level sender assembly with resistance values ranging from 180 ohms (empty) to 10 ohms (full), providing accurate fuel gauge readings. The blade-type male terminals (4 in total) facilitate secure electrical connections, while the average current draw is approximately 10 amps.

Applications and Problem Resolution

• Restores proper fuel pressure and flow in Mazda 6 fuel systems
• Replaces faulty or failing in-tank fuel pump modules
• Resolves inaccurate fuel level readings due to sender assembly issues
• Eliminates fuel delivery interruptions caused by clogged strainers
• Addresses electrical connection problems with blade terminal design

Installation Notes and Tips

Installation of the Delphi FG1582 fuel pump module assembly requires removal of the fuel tank to access the in-tank module. Ensure the fuel system is depressurized before beginning work. The included seal should be properly seated to prevent leaks, although a lock ring is not included and may need to be reused or replaced separately. Verify all electrical connections are secure on the blade terminals. Follow the provided instruction sheet carefully to maintain safety and proper installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Mazda 6 vehicles. It undergoes rigorous testing to ensure durability and reliable operation under normal driving conditions. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
