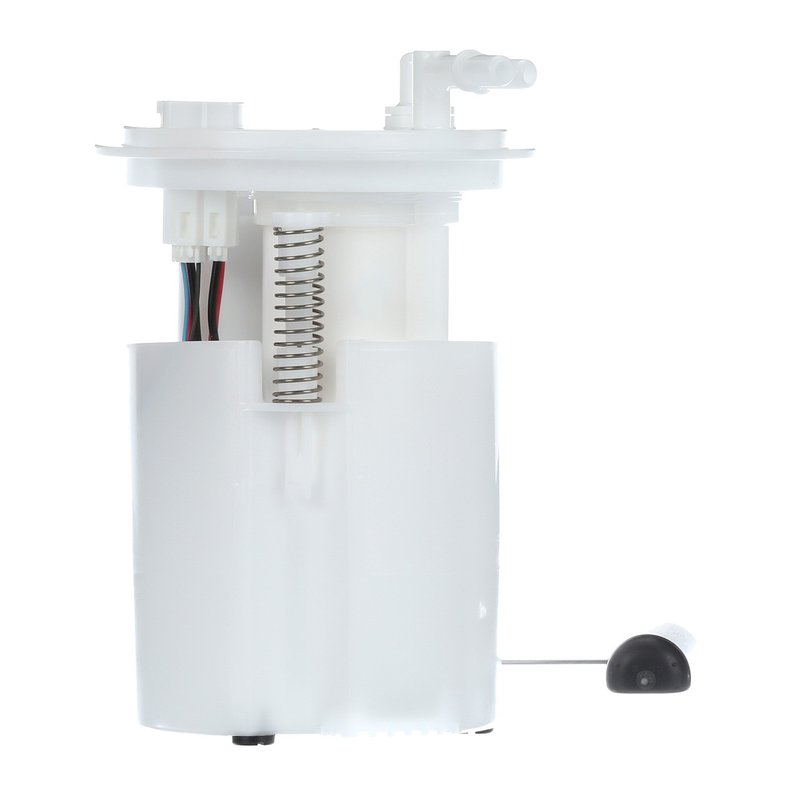

Delphi FG1583 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Subaru Impreza and XV Crosstrek

The Delphi FG1583 fuel pump module assembly is designed specifically for Subaru Impreza and XV Crosstrek models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems at 12V operation
• Includes internal strainer and regulator for clean, controlled fuel flow
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Blade-type male terminals with six connections for secure wiring
• Standard replacement grade with average flow rating of 22 liters per hour
• System pressure rated at 51 psi with maximum pressure up to 60 psi

Technical Details and Features

The Delphi FG1583 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Subaru Impreza and XV Crosstrek vehicles. It features an internal strainer inlet and includes a strainer to prevent debris from entering the fuel system. The module comes with a fuel level sender assembly, allowing accurate fuel gauge readings. The pump uses blade-type male terminals with six connections, ensuring reliable electrical contact. The quick connect outlet type with two outlets and a 0.375 inch outside diameter facilitates straightforward installation and fuel line connection. The pump maintains a system pressure of 51 psi and can handle a maximum pressure of 60 psi, supporting consistent fuel delivery under various driving conditions. Resistance values range from 140 ohms when empty to 9 ohms when full, with an average current draw of 10 amps.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Subaru models:

• Subaru Impreza
• Subaru XV Crosstrek

It is designed as a direct replacement for the original in-tank fuel pump module, addressing common fuel delivery issues such as inconsistent fuel pressure, fuel gauge inaccuracies, and pump failure.

Common Issues Addressed by Delphi FG1583

• Intermittent or low fuel pressure causing engine performance problems
• Faulty fuel level sender leading to inaccurate fuel gauge readings
• Fuel pump noise or failure due to clogged strainers or worn components
• Electrical connection issues with blade terminals
• Fuel delivery interruptions affecting engine start and operation

Installation Notes and Tips

Installation of the Delphi FG1583 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The module features quick connect outlets for easy fuel line attachment and blade-type terminals for electrical connections. Verify terminal orientation and secure all connections to prevent leaks or electrical faults. Note that the assembly does not include a gasket or lock ring, so reuse or replacement of these components may be necessary depending on vehicle condition. Follow manufacturer instructions included with the product for proper installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1583 is a standard replacement grade part designed to provide reliable operation within Subaru Impreza and XV Crosstrek fuel systems. While specific warranty details are not provided here, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
