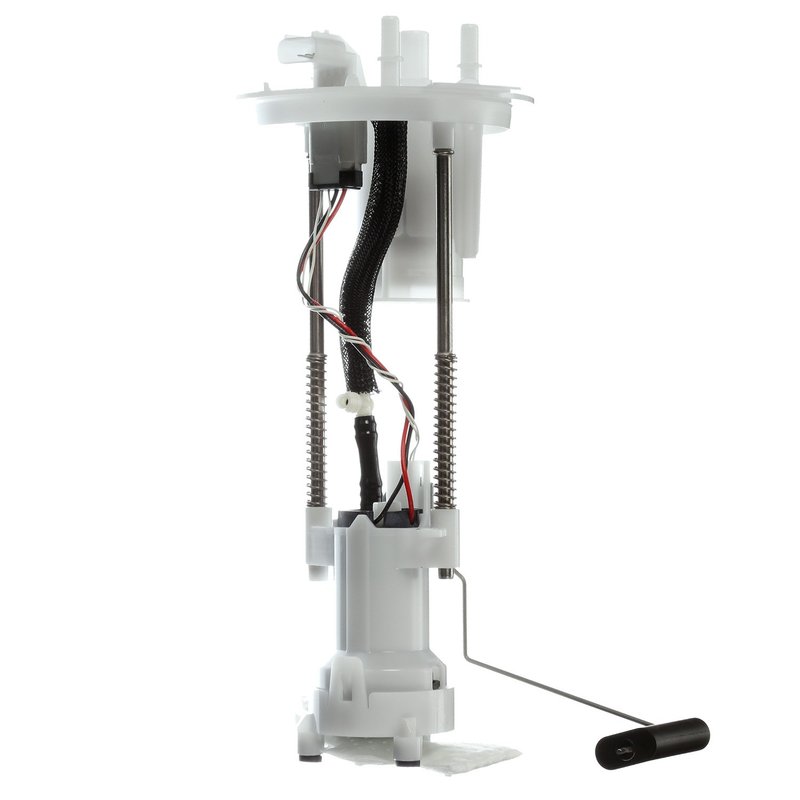

Delphi FG1584 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford F-150

The Delphi FG1584 fuel pump module assembly is designed specifically for Ford F-150 trucks, providing reliable fuel delivery for flex fuel systems. This in-tank electric fuel pump module ensures consistent fuel flow and accurate fuel level readings to maintain optimal engine performance.

Key Features of Delphi FG1584 Fuel Pump Module

• Voltage: 12.0V electric pump suitable for standard vehicle electrical systems
• Maximum pressure rating of 95 psi for efficient fuel delivery
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Equipped with an external strainer inlet and included strainer to protect the fuel system
• Four blade-type male terminals for secure electrical connections
• Gasket or seal included to ensure leak-free installation
• Designed for flex fuel compatibility, supporting ethanol blends
• Average flow rating of 63 liters per hour to meet fuel demand

Detailed Description

The Delphi FG1584 fuel pump module assembly is engineered as a direct replacement for Ford F-150 models requiring a reliable in-tank fuel pump. This electric pump operates at 12 volts and delivers a system pressure of 51 psi, with a maximum pressure capacity of 95 psi to maintain consistent fuel supply under various driving conditions. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s gauge. The pump features a quick connect outlet with a 0.375-inch diameter and four outlets, facilitating straightforward integration with the vehicle’s fuel lines. An external strainer inlet protects the pump from contaminants, and the included gasket ensures a secure, leak-free seal during installation. The blade-type male terminals (four in total) provide reliable electrical connections, supporting the pump’s average current draw of 10 amps. This module is designed for flex fuel applications, making it suitable for vehicles running on ethanol blends.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford F-150 flex fuel models
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection failures with blade terminal design

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Ford F-150 model year and flex fuel system
• Use the included gasket or seal to prevent fuel leaks during assembly
• Handle the float arm carefully to avoid damage to the fuel level sender
• Check all electrical connections for secure fitment on the blade terminals

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications, ensuring reliable performance and durability. The FG1584 is a standard replacement grade part designed to restore proper fuel delivery and fuel level sensing in Ford F-150 vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for exact warranty terms.
