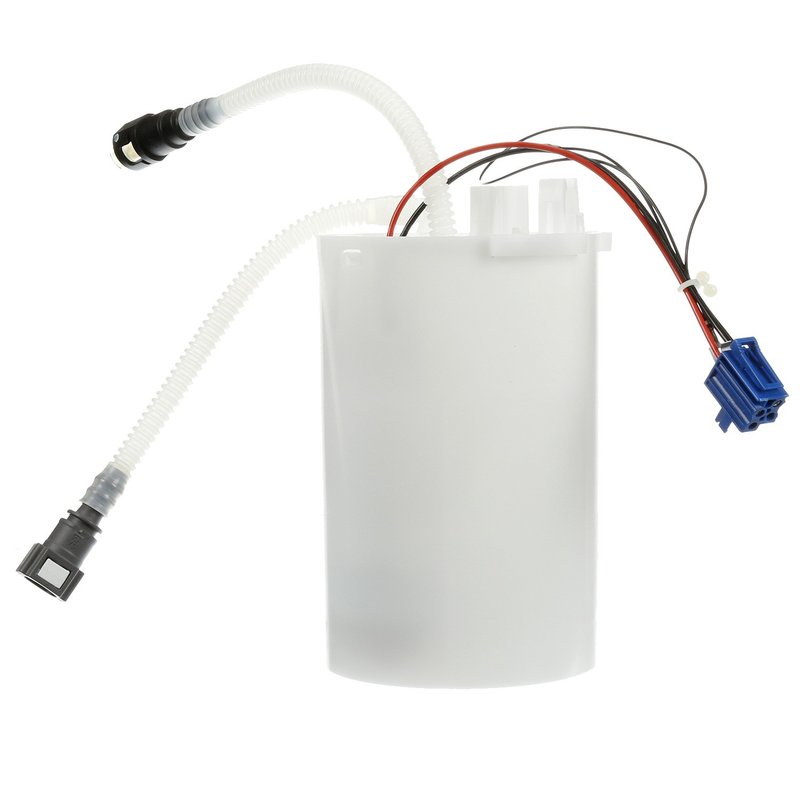

Delphi FG1589 Fuel Pump and Strainer Set

Delphi FG1589 Fuel Pump and Strainer Set

Delphi FG1589 is an in-tank electric fuel pump and strainer set for gas applications, built as a standard replacement for select BMW models. It delivers OE-based fuel system coverage with a 12-volt design, quick-connect outlets, and an included wiring harness and strainer for a cleaner service replacement.

Fits 2007-2010 BMW X3, N/A. This Delphi FG1589 fuel pump and strainer set is also cross-referenced to Airtex Fuel Pumps E8828M for the same application.

Key Features

• In-tank electric fuel pump for gas fuel systems
• 12.0-volt design with 95.0 maximum pressure and 99 psi system pressure
• Average flow rating of 85 with 10 amp average current draw
• Quick-connect outlet design with two female pin terminals
• Wiring harness included for service replacement
• Strainer included; internal strainer configuration
• Standard replacement grade for select BMW X3 applications

Detailed Description

Delphi FG1589 is engineered for fuel delivery service on 2007-2010 BMW X3 models. As an in-tank fuel pump and strainer set, it supports consistent fuel supply in gas-powered systems and uses an electric pump design with a quick-connect outlet for straightforward integration into the vehicle’s fuel system. Delphi draws on long OE experience and broad aftermarket coverage, which is reflected in the fit and construction of this replacement part.

The FG1589 includes the fuel pump and strainer set, along with an instruction sheet. It does not include a regulator, gasket, seal, or fuel level sender assembly. The outlet measures 0.313 outside diameter, and the unit uses a two-terminal female pin connection with the wiring harness included. Delphi FG1589 is a practical choice when servicing a BMW X3 fuel delivery issue and replacing a worn in-tank pump assembly.

What It Helps Fix

• Hard starting caused by weak fuel pressure
• Engine hesitation from inconsistent fuel delivery
• Stalling related to a failing in-tank fuel pump
• Fuel starvation under load or during acceleration
• Poor drivability from a restricted or worn strainer

Installation Notes and Tips

Before installing the fuel pump, clean the fuel tank to help prevent future seal problems, especially on BMW X3 applications. Verify electrical connector style, outlet configuration, and system pressure requirements before installation. Because this unit is an in-tank replacement, inspect the tank opening and surrounding components for contamination or wear during service.

Quality Assurance

Delphi builds aftermarket fuel system parts using OE heritage and knowledge developed through long-term supplier experience with major automakers. FG1589 is a standard replacement fuel pump and strainer set intended to meet the needs of select BMW X3 fuel system repairs.
