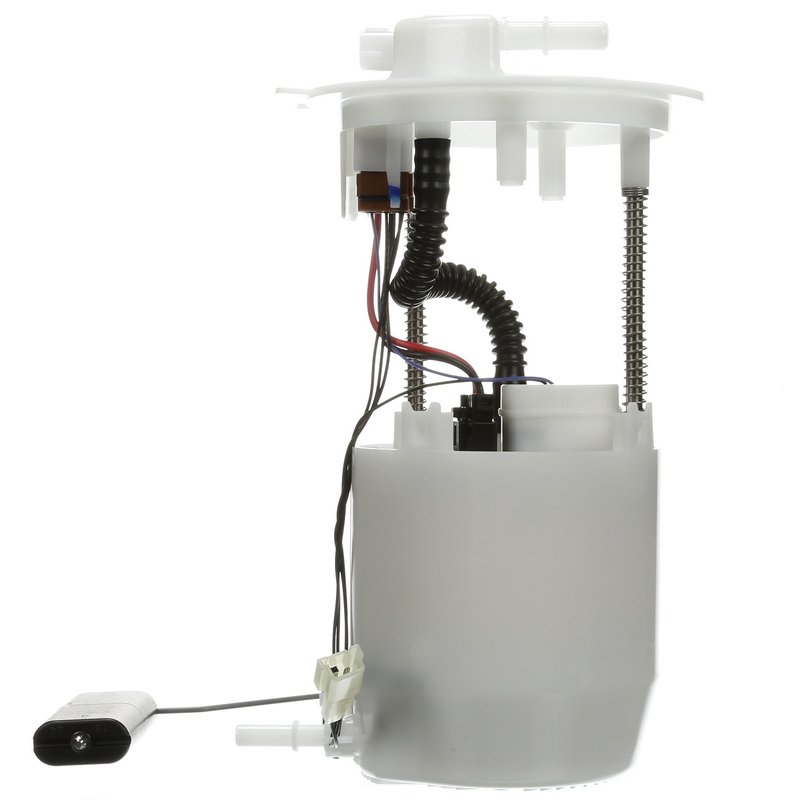

Delphi FG1598 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Nissan Juke

The Delphi FG1598 fuel pump module assembly is designed specifically for Nissan Juke models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• In-tank design with internal strainer for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter
• Includes fuel level sender assembly with float arm
• Blade-type male terminals, 5-terminal configuration
• Maximum pressure rating of 95 psi and system pressure of 73 psi
• Average flow rating of 55 liters per hour and average current draw of 10 amps

Technical Details and Features

The Delphi FG1598 fuel pump module assembly is engineered for gasoline-powered Nissan Juke vehicles. It features an electric pump type with a built-in fuel pressure regulator to maintain consistent fuel delivery at a system pressure of 73 psi and a maximum pressure of 95 psi. The module includes an internal strainer inlet to prevent contaminants from entering the fuel system, enhancing longevity and reliability. The outlet is a quick connect type with a 0.375 inch outside diameter, facilitating straightforward installation and secure fuel line connection.

This module comes equipped with a fuel level sender assembly, providing accurate fuel level readings to the vehicle’s dashboard. The electrical connection uses five male blade terminals, ensuring compatibility with the Nissan Juke’s wiring harness. Resistance values range from 100 ohms when empty to 26 ohms when full, supporting precise fuel level measurement.

Compatible Nissan Juke Fuel System Replacement

This fuel pump module assembly is a standard replacement part designed to restore proper fuel delivery and fuel level sensing in Nissan Juke models. It addresses common fuel system issues such as:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pressure fluctuations affecting engine performance
• Clogged or damaged internal strainer reducing fuel flow
• Electrical connection problems with blade-type terminals

Installation Notes and Tips

Installation of the Delphi FG1598 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the fuel system is depressurized before beginning work. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure to prevent leaks. Electrical terminals should be checked for corrosion and proper fit. Follow vehicle-specific service manual instructions for safe and correct installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1598 part is a standard replacement grade component designed for durability and reliable operation in Nissan Juke vehicles. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
