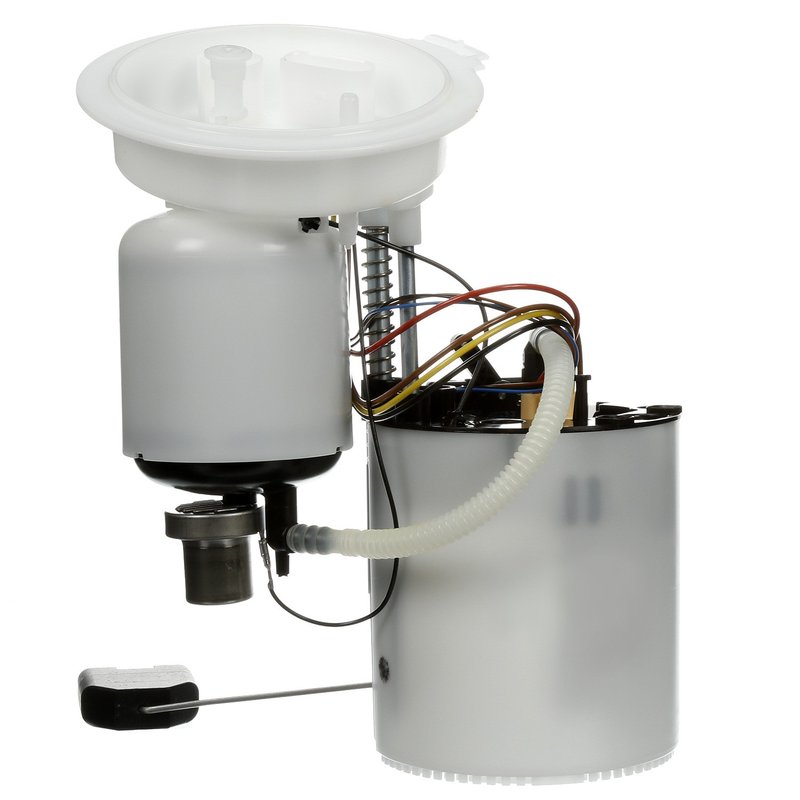

Delphi FG1601 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1601 fuel pump module assembly is designed for reliable fuel delivery in select Audi models. Engineered to meet OEM specifications, this in-tank electric fuel pump module ensures consistent fuel pressure and accurate fuel level readings for vehicles like the Audi A6, A6 Quattro, A7 Quattro, S6, and S7.

• Compatible with Audi A6, A6 Quattro, A7 Quattro, S6, and S7 models
• 12.0 Volt electric fuel pump with integrated regulator
• Maximum pressure rating of 95 psi and system pressure of 73 psi
• Includes internal strainer and fuel level sender assembly
• Blade-type male terminals with 4-terminal connections
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade for dependable performance

Technical Details and Features

The Delphi FG1601 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy installation. The module includes a built-in fuel pressure regulator to maintain optimal pressure up to 95 psi, with a system pressure rating of 73 psi. The fuel level sender assembly with float arm provides accurate fuel level readings, supported by resistance values ranging from 60 ohms (empty) to 288 ohms (full). The pump uses blade-type male terminals with four connections, ensuring secure electrical contact. This in-tank electric pump module is engineered to meet the fuel delivery demands of Audi A6, A6 Quattro, A7 Quattro, S6, and S7 vehicles.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in compatible Audi models
• Resolves issues with inconsistent fuel pressure or engine hesitation
• Corrects inaccurate fuel level readings caused by damaged sender assemblies
• Addresses fuel delivery interruptions due to clogged strainers or worn components
• Improves overall fuel system reliability and engine performance

Installation Notes and Tips

Installation of the Delphi FG1601 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The module features a quick connect outlet and blade-type terminals for straightforward connections. Note that the assembly does not include a gasket or lock ring, so reuse or replacement of these components may be necessary depending on vehicle condition. Follow the included instruction sheet carefully to ensure proper installation and avoid damage to the fuel system.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The FG1601 is a standard replacement grade part, designed for long service life in compatible Audi vehicles. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for detailed warranty information.
