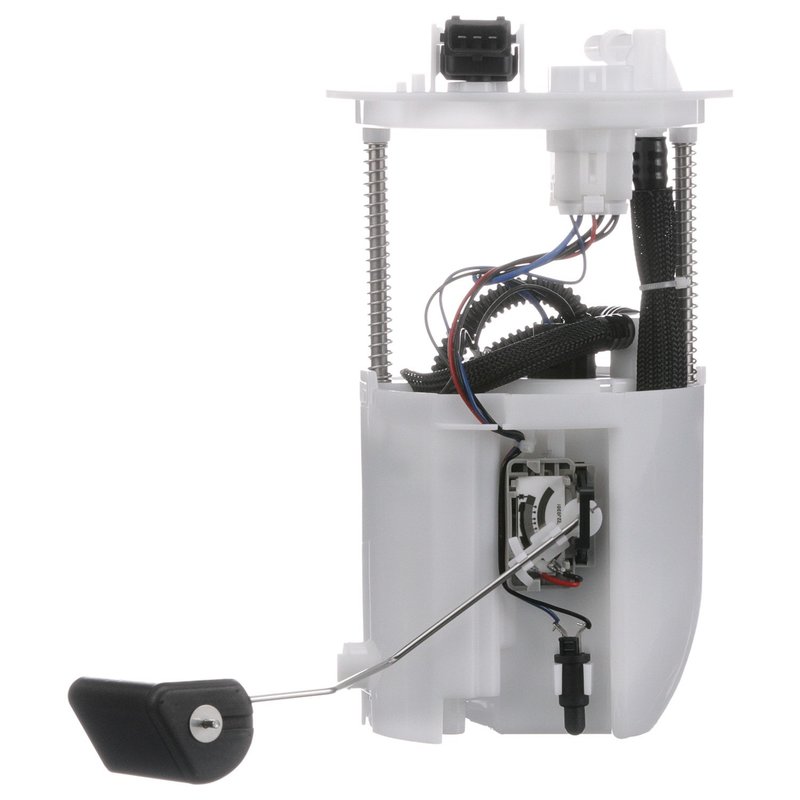

Delphi FG1603 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Mitsubishi Lancer

The Delphi FG1603 fuel pump module assembly is designed specifically for Mitsubishi Lancer models requiring a reliable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and includes essential components for accurate fuel level monitoring.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Compatible with gasoline fuel systems, designed for in-tank installation
• Includes regulator and internal strainer for optimal fuel filtration and pressure control
• Quick connect outlet with 0.375 inch outside diameter for secure fuel line attachment
• Five male blade terminals for reliable electrical connections
• System pressure rated at 47 psi with a maximum pressure of 102 psi
• Includes gasket and seal for proper installation and leak prevention
• Vapor pressure sensor integrated for emissions control

Technical Details and Features

The Delphi FG1603 fuel pump module assembly operates at 12 volts and is engineered for use with gasoline fuel types. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy installation. The module includes a fuel pressure regulator to maintain consistent system pressure at 47 psi, with a maximum pressure capacity of 102 psi. The assembly comes with five male blade terminals, ensuring secure electrical connections, and includes a fuel level sender assembly with resistance values ranging from 120 ohms (empty) to 13 ohms (full) for accurate fuel gauge readings. The internal vapor pressure sensor supports emissions compliance, while the included gasket and seal help prevent leaks during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Mitsubishi Lancer models requiring a standard replacement fuel pump module. It is designed for in-tank installation and supports electric fuel delivery systems in gasoline-powered vehicles.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inaccurate fuel level readings due to faulty sender units
• Replaces worn or damaged fuel pump modules to restore proper fuel pressure
• Helps eliminate fuel leaks with included gasket and seal
• Supports emissions system functionality with integrated vapor pressure sensor

Installation Notes and Tips

When installing the Delphi FG1603 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Use the included gasket and seal to prevent leaks and verify that all electrical connections are secure with the five male blade terminals. The quick connect outlet simplifies fuel line attachment, but confirm compatibility with existing fuel lines. Follow manufacturer instructions carefully to maintain system integrity and safety.

Quality Assurance and Warranty

The Delphi FG1603 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Mitsubishi Lancer vehicles. It includes a fuel level sender assembly and vapor pressure sensor to support accurate fuel management and emissions compliance. Delphi provides quality assurance through rigorous testing to ensure reliable performance. Warranty details should be confirmed with the point of purchase or Delphi directly.
