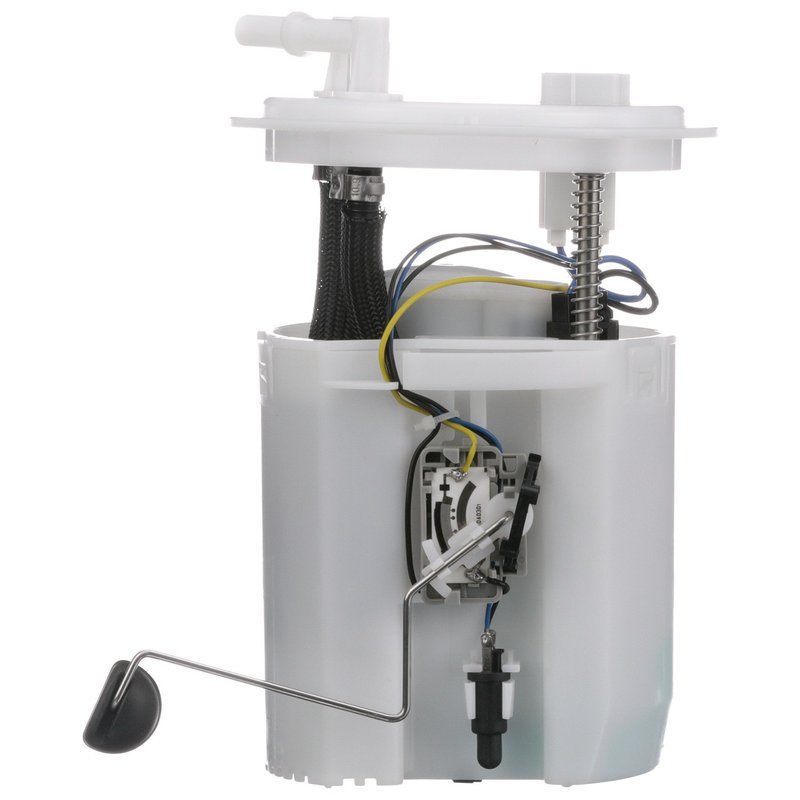

Delphi FG1606 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Subaru Legacy and Outback

The Delphi FG1606 fuel pump module assembly is designed specifically for Subaru Legacy and Outback models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance.

• 12.0 Volt electric fuel pump with internal strainer
• Includes fuel level sender assembly with float arm
• Maximum system pressure of 49 psi and average flow rating of 27
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals, 6 in total
• Regulator and strainer included for precise fuel management

Technical Details of the Delphi FG1606 Fuel Pump Module

This fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The pump maintains a system pressure of 46 psi and a maximum pressure rating of 49 psi, ensuring steady fuel flow. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings for the Subaru Legacy and Outback. The electrical connections use six male blade terminals, supporting reliable power delivery with resistance values ranging from 9 ohms (full) to 138 ohms (empty). The average current draw is 10 amps, with an average flow rating of 27 liters per hour, suitable for standard replacement needs.

Compatible Vehicles and Applications

This Delphi FG1606 fuel pump module assembly is compatible with the following Subaru models:

• Subaru Legacy
• Subaru Outback

It is designed to replace the original in-tank fuel pump module, addressing common fuel delivery and fuel level sensor issues.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Reduced fuel pressure affecting engine performance and fuel efficiency
• Fuel pump noise or failure from worn internal components
• Clogged fuel strainer leading to restricted fuel flow

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Verify compatibility with your Subaru Legacy or Outback model year before installation
• Use appropriate tools to remove and reinstall the lock ring (if applicable) and connectors
• Check for fuel leaks after installation and before starting the engine

Quality Assurance and Warranty Information

The Delphi FG1606 fuel pump module assembly is manufactured to meet OEM specifications for reliable performance and durability. It is a standard replacement grade part designed to restore proper fuel delivery and fuel level sensing. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or your supplier for detailed warranty information.
