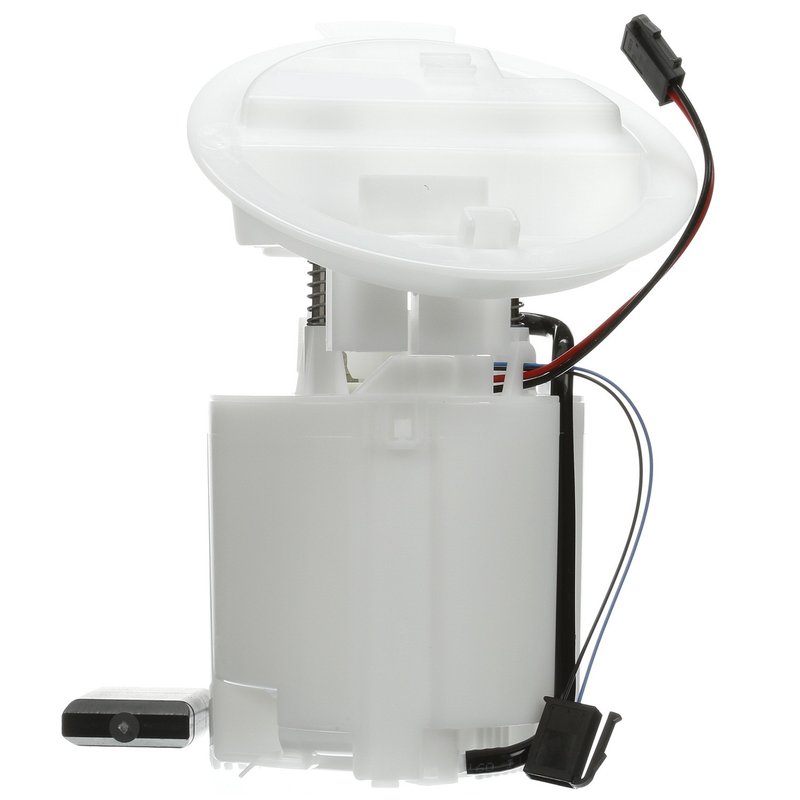

Delphi FG1615 Fuel Pump Module Assembly - Right

Delphi FG1615 Fuel Pump Module Assembly

The Delphi FG1615 fuel pump module assembly is a standard replacement for select Mercedes-Benz applications, including the 2012-2015 Mercedes-Benz C250, right side. Built for in-tank gasoline systems, it combines the pump and fuel level sender in one assembly for accurate fuel delivery and tank level reporting.

Delphi draws on OE experience and supplier knowledge developed over decades of original equipment work. That heritage is reflected in the FG1615 fuel pump module assembly, which is engineered for 12-volt operation, a quick-connect outlet, and an internal strainer for cleaner fuel handling in the tank.

Key Features

• Part number: FG1615
• Fuel pump module assembly with float arm and instruction sheet
• Fits 2012-2015 Mercedes-Benz C250, right
• 12.0V electric in-tank fuel pump for gasoline applications
• Fuel level sender assembly included
• Quick-connect outlet with one outlet port
• Internal strainer included
• Maximum pressure: 95.0
• Average flow rating: 55
• Standard replacement grade

Product Details

The Delphi FG1615 is a fuel pump module assembly for in-tank gasoline systems that require integrated fuel delivery and level sensing. It includes a fuel level sender assembly, uses a blade-style 4-terminal male electrical connection, and is configured with a quick-connect outlet for straightforward fuel line attachment. System pressure is listed at 99 psi, with a maximum pressure rating of 95.0 and an average current draw of 10.

This part cross-references Mercedes-Benz OE number 204 470 02 94 and Delphi CFG1615 for the same application. The FG1615 is also referenced for Mercedes-Benz C250 right-side service needs across the 2012, 2013, 2014, and 2015 model years.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine hesitation from inconsistent fuel pressure
• Incorrect fuel gauge readings from a worn sender
• Fuel starvation from a failing in-tank pump module
• Driveability issues tied to unstable gasoline supply

Installation Notes

Before installing the fuel pump module assembly, clean the fuel tank to help prevent future seal problems, as noted in the fitment information. Verify right-side placement, electrical terminal style, outlet connection type, and fuel line routing before installation. Confirm the vehicle uses the listed gasoline in-tank configuration and match the part number FG1615 to the application before service.

Quality Assurance

Delphi builds aftermarket parts using OE heritage and knowledge developed through long-term original equipment supply experience. The FG1615 reflects that background with application-specific engineering for select Mercedes-Benz fuel system service.
