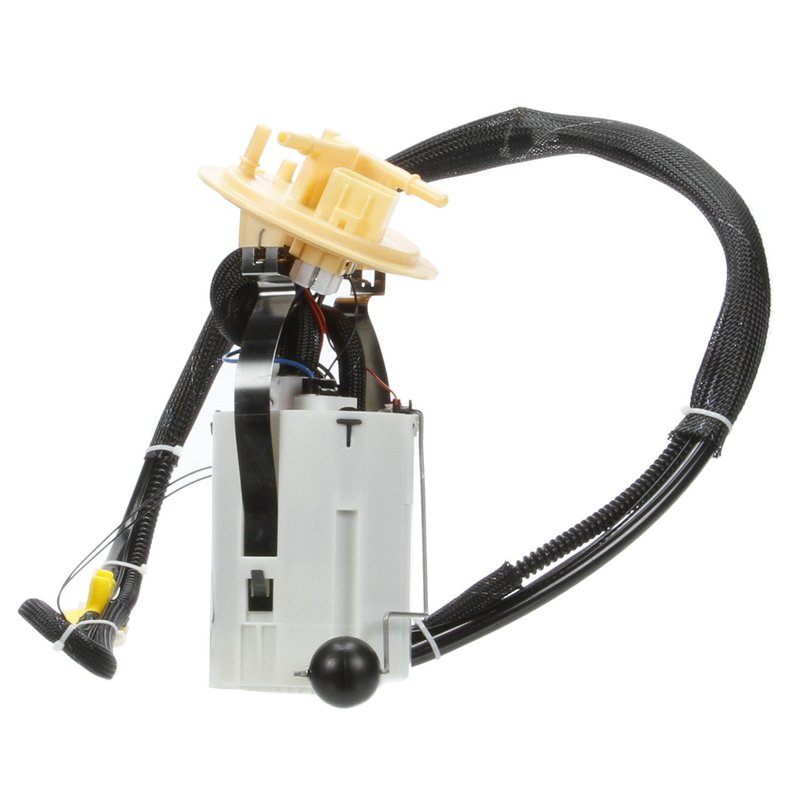

Delphi FG1617 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volvo S60 and XC70

The Delphi FG1617 fuel pump module assembly is designed to provide consistent fuel delivery and accurate fuel level readings for Volvo S60 and XC70 models. This in-tank electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Volvo S60 and XC70 gas engines
• Includes regulator, internal strainer, and gasket for secure installation
• Operates at 12 volts with a maximum pressure of 58 psi and system pressure of 55 psi
• Features quick connect outlets and blade-type male terminals (7 terminals)

Technical Specifications and Features

The Delphi FG1617 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It includes an internal strainer inlet and a quick connect outlet with an outside diameter of 0.313 inches. The module features a built-in fuel pressure regulator capable of maintaining a maximum pressure of 58 psi and a system pressure of 55 psi, ensuring stable fuel delivery under various driving conditions. The assembly comes with a fuel level sender assembly, providing accurate fuel level readings with resistance values ranging from 392 ohms (empty) to 12 ohms (full). The pump draws an average current of 10 amps and delivers an average flow rating of 50 liters per hour. The module includes a gasket or seal and a strainer to protect the fuel system from contaminants. It uses blade-type male terminals with a total of seven connections for secure electrical integration.

Application and Common Issues Addressed

This fuel pump module assembly is specifically compatible with Volvo S60 and XC70 models requiring a standard replacement fuel pump module. It is designed to address several common fuel system issues, including:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings on the dashboard
• Fuel pressure fluctuations causing engine performance problems
• Fuel contamination due to lack of proper filtration
• Electrical connection failures in the fuel pump circuit

Installation Notes and Tips

Installation of the Delphi FG1617 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket or seal to prevent fuel leaks and verify that all seven blade terminals are properly connected to maintain electrical integrity. The quick connect outlets simplify fuel line attachment, but confirm all connections are secure to avoid fuel leaks. Follow the vehicle manufacturer’s torque specifications and safety guidelines during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG1617 is a standard replacement grade part, designed for reliable operation in Volvo S60 and XC70 vehicles. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for detailed warranty information.
