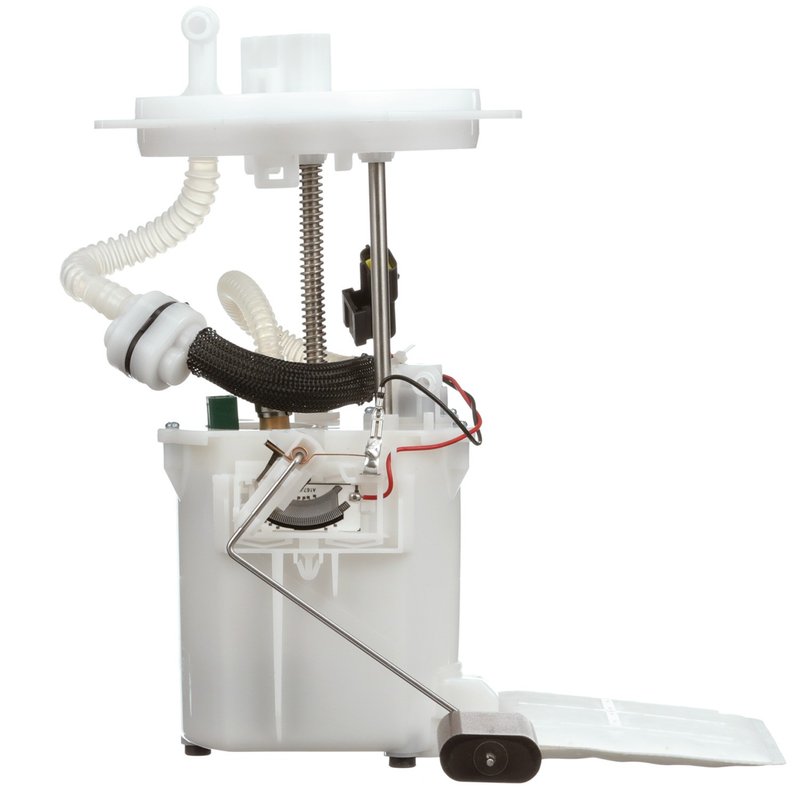

Delphi FG1618 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Jaguar X-Type

The Delphi FG1618 fuel pump module assembly is designed specifically for the Jaguar X-Type, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components tailored to your vehicle's fuel system requirements.

Key Features of Delphi FG1618 Fuel Pump Module

• 12.0 Volt electric fuel pump with a maximum pressure of 95 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• External strainer inlet type with quick connect outlet (0.375 inch diameter)
• Blade-type male terminals with six connections for secure electrical fitment
• Average flow rating of 75 liters per hour and system pressure of 51 psi
• Regulator and strainer included for optimal fuel filtration and pressure control
• Designed as a standard replacement part for Jaguar X-Type fuel systems

Detailed Description of the Delphi FG1618 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1618) is engineered for the Jaguar X-Type to maintain proper fuel delivery and system pressure. Operating at 12 volts, the electric pump provides an average current draw of 10 amps and delivers a consistent flow rate of 75 liters per hour. The module features an external strainer inlet and a quick connect outlet with a 0.375-inch diameter, ensuring efficient fuel flow and easy installation. The integrated fuel level sender assembly with float arm allows accurate fuel level monitoring, essential for the vehicle's fuel gauge functionality. The six blade-type male terminals provide a secure electrical connection, supporting the pump's operation within the vehicle's fuel system. This module includes a regulator to maintain maximum pressure at 95 psi, supporting the Jaguar X-Type's fuel injection requirements.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure in Jaguar X-Type vehicles
• Inaccurate fuel level readings due to faulty sender assembly
• Loss of fuel system pressure causing engine performance issues
• Fuel pump noise or electrical connection problems from worn terminals
• Clogged fuel strainer affecting fuel flow and engine operation

Installation Notes and Tips

• Ensure the vehicle's battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Jaguar X-Type model year and fuel system specifications
• Handle the fuel pump module carefully to avoid damage to the float arm and terminals
• Inspect and clean the fuel tank area before installing the new module
• Follow the included instruction sheet for proper installation and torque specifications

Quality Assurance and Warranty Information

The Delphi FG1618 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. As a standard replacement part, it undergoes rigorous testing to ensure durability and reliable operation within the Jaguar X-Type fuel system. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for exact warranty terms.
