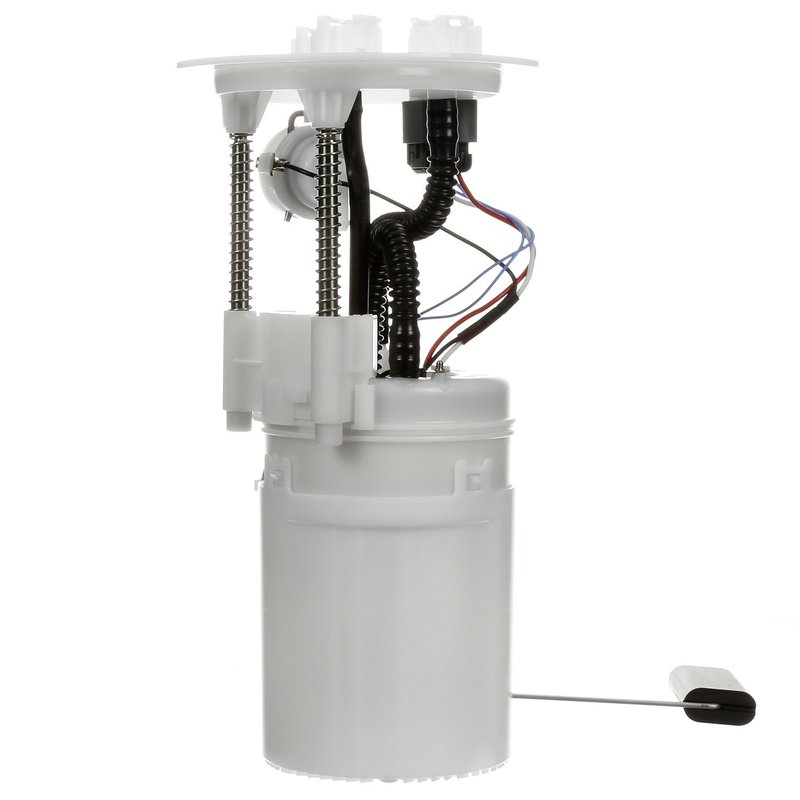

Delphi FG1624 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1624 fuel pump module assembly is designed for reliable fuel delivery in Toyota Sequoia and Tundra models. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Maximum pressure rating of 95 psi and system pressure of 58 psi
• Includes internal strainer and fuel level sender assembly
• Blade-type male terminals with 4-terminal configuration
• Push-in outlet type with 0.313 inch outside diameter
• Compatible with flex fuel systems
• Standard replacement grade for Toyota Sequoia and Tundra

Technical Details and Specifications

The Delphi FG1624 fuel pump module assembly operates at 12 volts and features an electric pump type designed for in-tank installation. It includes an internal strainer to prevent debris from entering the fuel system and a fuel level sender assembly with a float arm for accurate fuel gauge readings. The pump delivers an average flow rating of 25 liters per hour and maintains system pressure at 58 psi, with a maximum pressure capacity of 95 psi. The outlet is a push-in type with an outside diameter of 0.313 inches and has two outlets to support fuel delivery. The module uses blade-type male terminals, with four terminals in total, ensuring secure electrical connections. This assembly is compatible with flex fuel types, making it suitable for vehicles requiring ethanol-blended fuels.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with select Toyota models, specifically the Toyota Sequoia and Toyota Tundra. It is designed as a direct replacement part for these vehicles, ensuring proper fit and function. The Delphi FG1624 is ideal for addressing fuel delivery issues in these models, including:

• Intermittent or no fuel delivery
• Fuel pressure drops causing engine performance problems
• Inaccurate fuel level readings
• Fuel pump noise or failure
• Issues related to flex fuel compatibility

Installation Notes and Tips

When installing the Delphi FG1624 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. The module is designed for in-tank installation and requires careful handling of the internal strainer and float arm. Verify electrical connections match the blade-type male terminals and confirm the push-in outlet fittings are secure. It is recommended to follow the vehicle manufacturer’s service manual for removal and installation procedures to maintain safety and proper operation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for durability and performance. The FG1624 is a standard replacement grade part, engineered to provide consistent fuel delivery and accurate fuel level readings. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the vehicle service provider for exact warranty terms.
