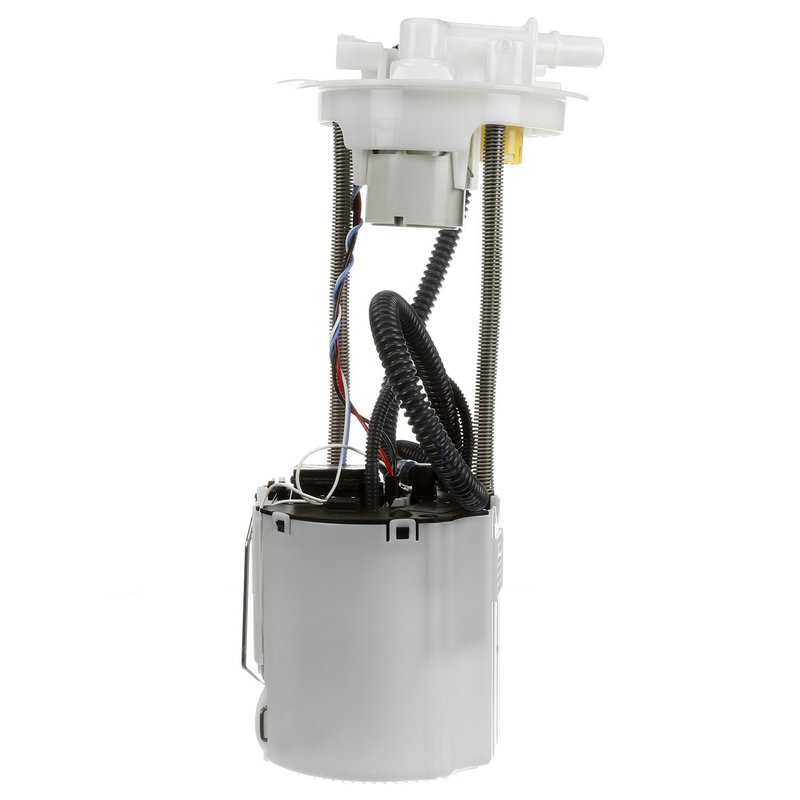

Delphi FG1625 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1625 fuel pump module assembly is designed for reliable fuel delivery in select Chevrolet and GMC vehicles. Engineered for in-tank installation, this electric fuel pump module supports gas fuel systems and includes essential components for efficient operation.

• Compatible with Chevrolet Equinox and GMC Terrain models
• 12-volt electric pump with a maximum pressure of 85 psi
• Includes fuel level sender assembly and internal strainer
• Quick connect outlet with 0.375 inch outside diameter
• Regulator and gasket/seal included for secure installation
• Blade-type male terminals with four connections
• Average flow rating of 30 liters per hour and system pressure of 44 psi
• Vapor pressure sensor integrated for accurate fuel system monitoring

Technical Details and Features

The Delphi FG1625 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with three outlets, each measuring 0.375 inches in diameter. The module includes a regulator to maintain consistent fuel pressure up to 85 psi and a vapor pressure sensor to support emissions control. The assembly comes with a gasket or seal to ensure a tight fit within the fuel tank, and the blade-type male terminals provide four connection points for secure electrical integration. The fuel level sender assembly is included, allowing accurate fuel gauge readings in Chevrolet Equinox and GMC Terrain vehicles. This standard replacement part draws an average current of 10 amps and delivers a flow rating of 30 liters per hour, supporting optimal engine performance.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Equinox (select model years)
• GMC Terrain (select model years)

It is designed for in-tank installation on the right side position and is suitable for gas fuel systems requiring a reliable electric fuel pump module. The FG1625 part number ensures proper fitment and function for these specific makes and models.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure inconsistencies affecting engine performance
• Fuel pump noise or electrical connection problems
• Clogged fuel strainer causing restricted fuel flow

Installation Notes and Tips

When installing the Delphi FG1625 fuel pump module assembly, ensure the gasket or seal is properly seated to prevent fuel leaks. The quick connect outlets simplify fuel line connections, but verify all fittings are secure. Use caution when handling the blade-type male terminals to avoid damage. This module is designed for in-tank installation on the right side; confirm vehicle compatibility before installation. Follow manufacturer instructions included with the product for best results.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for durability and performance. The FG1625 is a standard replacement grade part, tested for consistent fuel delivery and electrical reliability. It includes a fuel level sender assembly and vapor pressure sensor to maintain system accuracy. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
