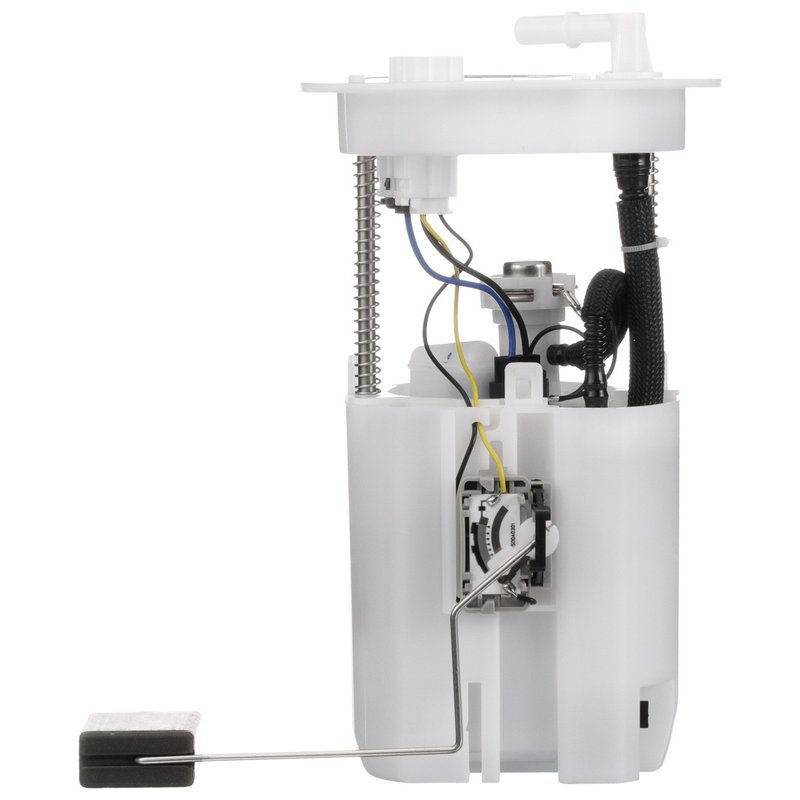

Delphi FG1627 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura and Honda Vehicles

The Delphi FG1627 fuel pump module assembly is designed specifically for select Acura and Honda models, including the Accord and TLX. This in-tank electric fuel pump ensures consistent fuel delivery and pressure for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 58 psi and system pressure of 52 psi
• Outlet outside diameter of 0.375 inches with quick connect outlet
• Four male blade terminals for secure electrical connections
• Internal strainer and included gasket, seal, and lock ring for proper installation
• Average flow rating of 33 and average current draw of 10 amps

Technical Details and Features

The Delphi FG1627 fuel pump module assembly is engineered for gas-powered Acura Accord and Honda TLX vehicles. This standard replacement part operates at 12 volts and features an internal strainer to prevent debris from entering the fuel system. The module includes a regulator to maintain consistent fuel pressure up to 58 psi, supporting efficient engine operation. The fuel pump has a quick connect outlet with a 0.375-inch outside diameter, facilitating straightforward installation and connection. Four male blade terminals provide reliable electrical contact, while the included gasket, seal, and lock ring ensure a secure and leak-free fit inside the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Acura Accord
• Honda Accord
• Acura TLX
• Honda TLX

It is designed to replace the original fuel pump module in these vehicles, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by the Delphi FG1627

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure fluctuations affecting engine performance
• Fuel pump noise or overheating from worn components
• Leaks or poor sealing inside the fuel tank

Installation Notes and Tips

Installation of the Delphi FG1627 fuel pump module assembly requires removal of the fuel tank or access panel. Ensure the vehicle’s battery is disconnected before beginning work. Use the included gasket, seal, and lock ring to secure the module and prevent leaks. Verify all electrical connections are clean and properly seated on the four blade terminals. After installation, check for fuel leaks and proper fuel pressure operation before completing the job.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG1627 is a standard replacement grade part backed by Delphi’s quality standards. While specific warranty terms may vary, Delphi products typically include coverage against defects in materials and workmanship to ensure reliable service life.
