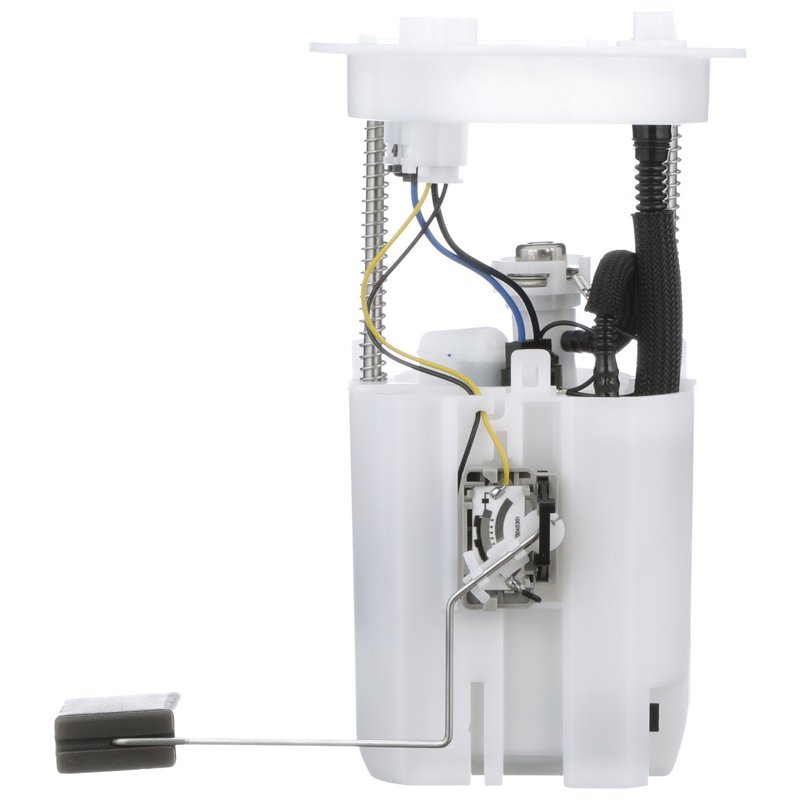

Delphi FG1628 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda Accord

The Delphi FG1628 fuel pump module assembly is designed specifically for Honda Accord models requiring a reliable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates on 12.0 volts compatible with standard automotive electrical systems
• Includes integrated fuel pressure regulator rated up to 95 psi
• Equipped with a blade-type terminal, featuring 4 male terminals for secure electrical connections
• Comes with a gasket, lock ring, and internal strainer for complete installation
• Fuel type compatibility: Gasoline
• Average flow rating of 54 liters per hour to meet fuel demand
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Designed as a standard replacement part for Honda Accord fuel systems

Technical Details and Features

The Delphi FG1628 fuel pump module assembly is an electric in-tank pump engineered to maintain a system pressure of 59 psi, ensuring steady fuel delivery to the engine. Its internal strainer and quick connect outlet type help prevent contaminants from entering the fuel system while simplifying installation. The module’s resistance ranges from 779 ohms when empty to 20 ohms when full, providing reliable electrical performance. The included regulator maintains maximum pressure at 95 psi, protecting the fuel system from overpressure conditions. This assembly also features a vapor pressure sensor exclusion, focusing on core fuel delivery functions.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Honda Accord models requiring a direct replacement fuel pump module. It is designed to address common fuel delivery issues such as inconsistent fuel pressure, fuel pump failure, and inaccurate fuel level readings.

• Resolves fuel delivery interruptions and engine stalling
• Corrects erratic or inaccurate fuel gauge readings
• Replaces worn or damaged fuel pump modules to restore performance
• Prevents fuel leaks with included gasket and lock ring
• Supports smooth engine operation by maintaining proper fuel pressure

Installation Notes and Tips

Installation of the Delphi FG1628 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the blade-type terminals provided, and verify the lock ring is securely fastened to prevent fuel leaks. The included gasket and internal strainer should be inspected and replaced as needed during installation. Follow vehicle-specific service manual instructions for safe handling of fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This FG1628 assembly is a standard replacement part backed by Delphi’s quality standards. While specific warranty terms may vary, Delphi products typically include coverage against defects in materials and workmanship to ensure dependable operation in Honda Accord vehicles.
