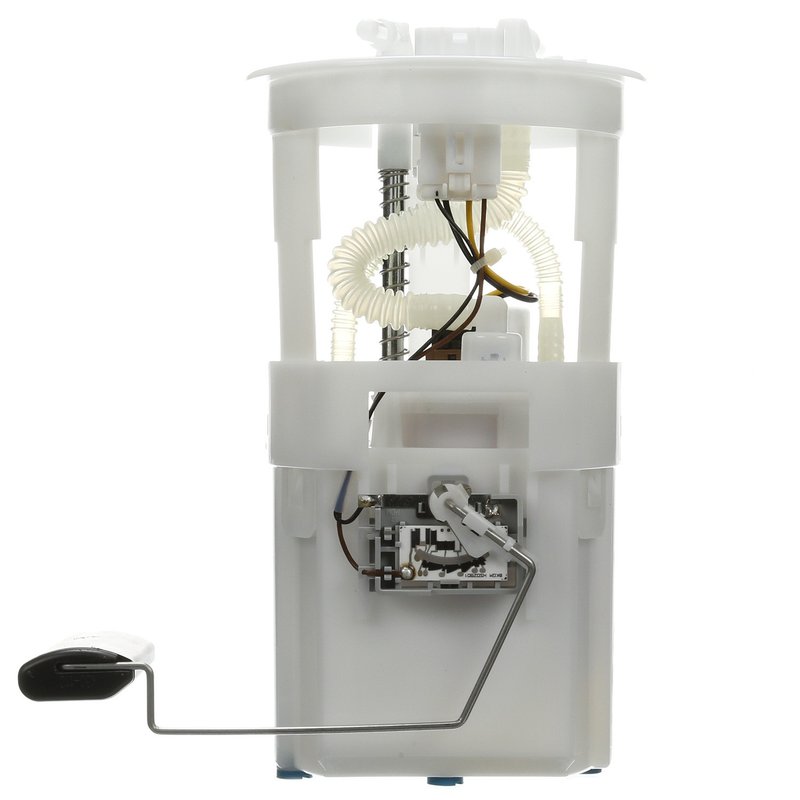

Delphi FG1650 Fuel Pump Module Assembly

Fuel Pump Module for Genesis Coupe

Delphi FG1650 is an in-tank fuel pump module assembly for gas applications, built for 12-volt systems and standard replacement service. It includes the fuel level sender assembly, regulator, strainer, and seal for a complete service solution on 2010-2012 Hyundai Genesis Coupe models.

Key Features

• In-tank electric fuel pump module assembly
• 12.0V gas fuel system application
• Maximum pressure: 95.0
• System pressure: 55 psi
• Average flow rating: 65
• Fuel level sender assembly included
• Regulator included
• Strainer and gasket/seal included
• Quick-connect outlet design with 2 outlets
• Blade terminals, 4-terminal male connection

Detailed Description

Delphi FG1650 is engineered as a standard replacement fuel pump module assembly for the Hyundai Genesis Coupe. It is an in-tank, electric unit for gasoline fuel systems and includes the pump module, float arm, seal, and instruction sheet. Delphi draws on OE experience and supplier knowledge developed across a wide range of vehicle applications, which is reflected in the design and component selection of this assembly. This part cross-references Spectra Premium SP1381 for the same application.

Compatible With 2010-2012 Hyundai Genesis Coupe, N/A. The FG1650 part number is also referenced in interchange listings including 31090-2M000, 31110-2M500, CFG1650, E2518, E9061M, and SP3066M. Use Delphi FG1650 when servicing a Genesis Coupe fuel delivery system that requires an in-tank module with integrated sender and regulator.

Common Repair Symptoms

• Hard starting or extended crank time
• Engine stalling from inconsistent fuel delivery
• Low fuel pressure or pressure drop under load
• Inaccurate fuel level readings
• Fuel pump noise from the tank area

Installation Notes

Before installation, clean the fuel tank to help prevent seal issues after service. Verify connector style, outlet configuration, and system pressure requirements before replacing the module. Confirm the tank opening is clean and the seal seats properly during assembly. This fuel pump module assembly uses quick-connect outlets and blade terminals, so matching the vehicle harness and fuel line connections is important during installation.

Quality Assurance

Delphi builds aftermarket parts using OE heritage and application knowledge developed from supplying major automakers. FG1650 is a standard replacement fuel pump module assembly intended to meet the needs of the listed Hyundai Genesis Coupe applications with the specified fuel system configuration.
