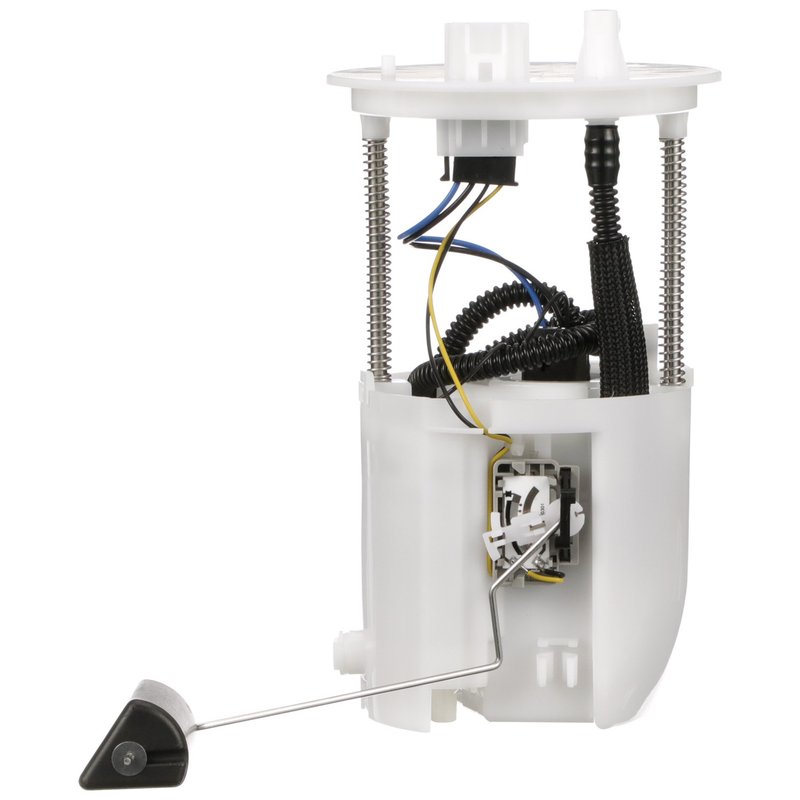

Delphi FG1651 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Mazda CX-5

The Delphi FG1651 fuel pump module assembly is designed specifically for Mazda CX-5 models requiring a reliable in-tank electric fuel pump. This assembly ensures consistent fuel delivery with integrated components to maintain optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Internal strainer inlet type for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter
• Maximum system pressure of 59 psi with regulator included
• Four male blade terminals for secure electrical connection
• Average flow rating of 29 liters per hour and 10 amps current draw
• Standard replacement grade with package including seal, bolts, washers, and instructions

Product Details and Specifications

The Delphi FG1651 fuel pump module assembly is engineered as an in-tank electric pump compatible with gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet designed for efficient fuel flow and filtration. The assembly includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. Operating at 12 volts, the pump maintains a system pressure of 55 psi and a maximum pressure rating of 59 psi, supported by an integrated regulator. The four male blade terminals ensure a reliable electrical connection, while the average current draw is approximately 10 amps. This module is a standard replacement part, supplied with necessary installation hardware including seal, bolts, washers, and detailed instructions.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Mazda CX-5 models requiring part number FG1651. It is designed to replace the original in-tank fuel pump module, addressing issues related to fuel delivery and level sensing.

• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Replaces worn or damaged fuel pump components causing engine performance issues
• Addresses fuel contamination by utilizing the internal strainer
• Eliminates electrical connection failures with secure blade terminals

Installation Notes and Tips

Installation of the Delphi FG1651 fuel pump module assembly should be performed by a qualified technician familiar with Mazda CX-5 fuel systems. Ensure the vehicle’s battery is disconnected before beginning. The package includes a seal, bolts, washers, and instructions to facilitate proper installation. Verify the correct orientation of the float arm and secure all electrical connections to the four male blade terminals. Confirm that the quick connect outlet is properly seated to prevent fuel leaks. After installation, test the fuel system pressure and fuel level sender operation to ensure proper functionality.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1651 assembly undergoes rigorous testing to ensure durability and reliable performance in Mazda CX-5 vehicles. This product is offered as a standard replacement part and includes a limited warranty against defects in materials and workmanship. For specific warranty terms, refer to Delphi’s official documentation.
