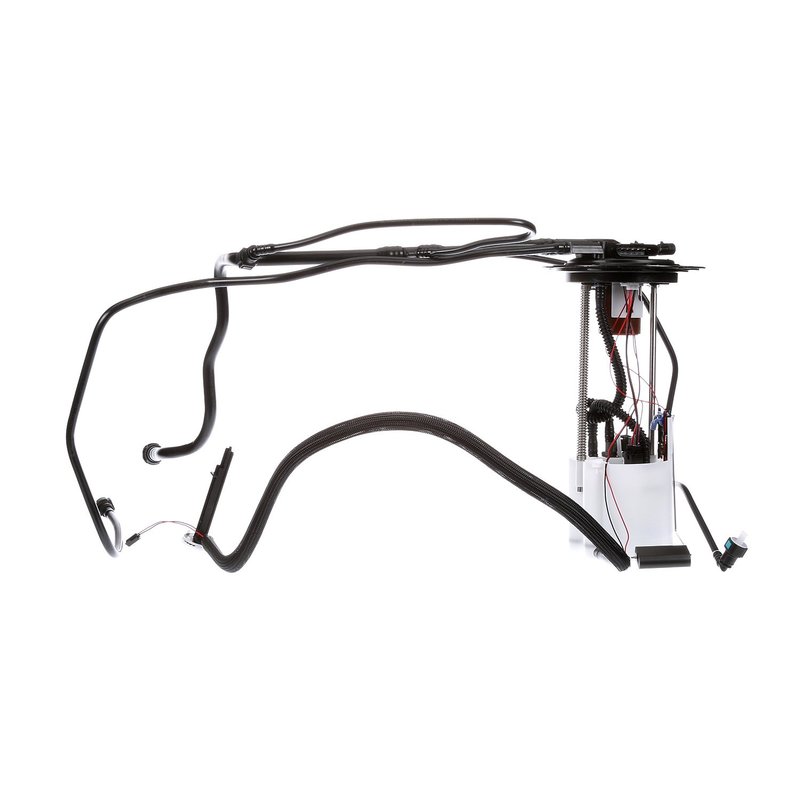

Delphi FG1658 Fuel Pump Module Assembly - Right

Delphi FG1658 Fuel Pump Module Assembly Overview

The Delphi FG1658 fuel pump module assembly is designed specifically for Saturn Vue models, providing reliable in-tank fuel delivery for gasoline engines. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• Compatible with Saturn Vue gasoline engines
• 12.0 Volt electric pump with an average current draw of 7 amps
• Maximum pressure rating of 94 psi and system pressure of 51 psi
• Includes internal strainer and fuel level sender assembly
• Equipped with a female quick connect outlet and blade-type male terminals (6 terminals)
• Comes with gasket, seal, and lock ring for secure installation
• Standard replacement grade part with resistance values of 125 ohms (empty) and 20 ohms (full)
• Positioned for right side tank installation
• Vapor pressure sensor included for accurate fuel system monitoring

Technical Details and Features

The Delphi FG1658 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Saturn Vue vehicles. It features an internal strainer inlet type and a female quick connect outlet with an outside diameter of 0.375 inches. The module includes a fuel level sender assembly with a float arm, allowing precise fuel level readings. The pump is electric with an average flow rating of 16 gallons per hour, supporting consistent fuel delivery under various driving conditions. The assembly includes six male blade terminals and comes with all necessary seals and a lock ring to ensure a secure and leak-free installation.

Applications and Problem Resolution

This fuel pump module assembly is used to replace faulty or worn fuel pumps in Saturn Vue models, restoring proper fuel delivery and engine performance. It addresses common issues such as:

• Engine stalling or hesitation due to insufficient fuel pressure
• Fuel pump noise or failure
• Inaccurate fuel level readings caused by faulty sender units
• Fuel leaks from damaged seals or connectors
• Intermittent starting problems related to fuel delivery

Installation Notes and Tips

Installation of the Delphi FG1658 fuel pump module assembly requires removal of the fuel tank and proper handling of fuel system components. Ensure the gasket and lock ring are correctly seated to prevent leaks. Verify electrical connections match the six male blade terminals and confirm the correct orientation for the right side tank position. Follow all safety precautions when working with fuel systems, including depressurizing the fuel lines before removal.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Saturn Vue vehicles. The product includes a vapor pressure sensor for enhanced fuel system diagnostics. While specific warranty details are not provided here, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
