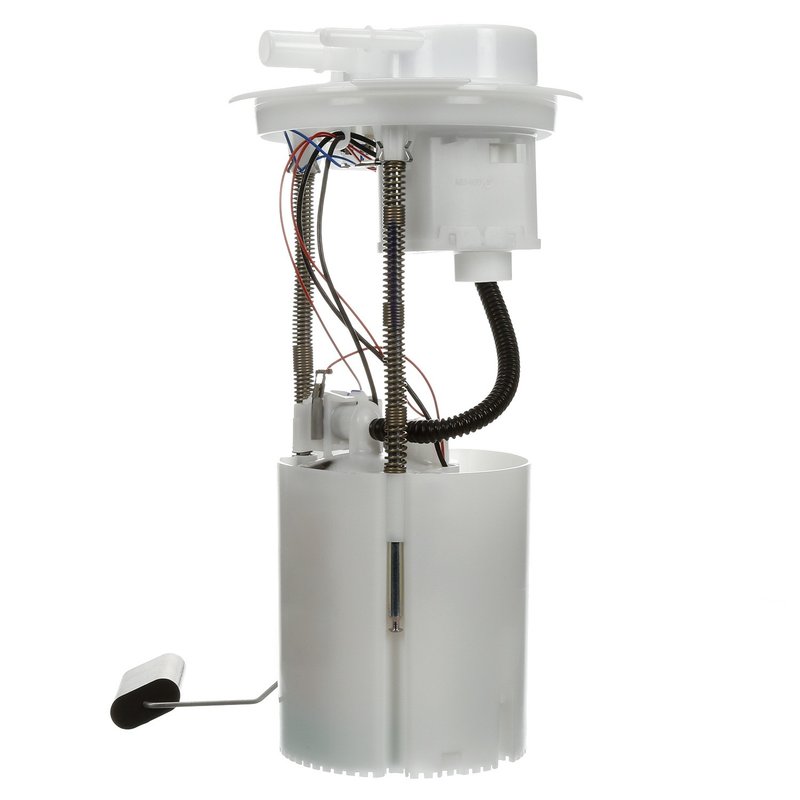

Delphi FG1662 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Fiat 500

The Delphi FG1662 fuel pump module assembly is designed specifically for the Fiat 500, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for gasoline engines requiring a 12-volt system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Fiat 500 gasoline engines
• Includes regulator, internal strainer, and gasket for secure installation
• Operates at 12 volts with a maximum pressure of 95 psi
• Features quick connect outlets with 0.375 inch outside diameter
• Four male blade terminals for reliable electrical connections
• Average flow rating of 26 liters per hour and system pressure of 51 psi

Product Features and Specifications

The Delphi FG1662 fuel pump module assembly is engineered for precise fuel delivery and durability. It operates on a 12.0-volt electrical system and is designed for gasoline fuel types. The module includes a built-in fuel pressure regulator and an internal strainer to prevent contaminants from entering the fuel system. The fuel pump features three quick connect outlets with a 0.375 inch outside diameter, facilitating straightforward fuel line connections. It has four male blade terminals, ensuring secure and stable electrical contact. The fuel level sender assembly is integrated, providing accurate fuel level readings to the vehicle’s dashboard. This module is intended for in-tank installation, maintaining optimal fuel pressure at 51 psi with a maximum capability of 95 psi. The average current draw is 10 amps, and the pump delivers an average flow rate of 26 liters per hour, suitable for the fuel demands of the Fiat 500.

Compatible Vehicles and Applications

• Compatible with Fiat 500 models requiring a standard replacement fuel pump module
• Designed for gasoline-powered Fiat 500 vehicles with 12-volt electrical systems
• Ideal for replacing faulty or worn fuel pump modules to restore fuel delivery and fuel level accuracy
• Addresses issues such as fuel delivery interruptions, inaccurate fuel gauge readings, and low fuel pressure

Installation Notes and Tips

When installing the Delphi FG1662 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. The included gasket or seal should be carefully positioned to prevent leaks. Verify that the four male blade terminals are correctly connected to the vehicle’s wiring harness. The quick connect outlets simplify fuel line attachment but confirm all connections are secure before operation. This module is designed for in-tank installation, so handle the unit carefully to avoid damage to the internal strainer and fuel level sender assembly.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The FG1662 is a standard replacement grade part, tested for consistent fuel pressure and flow rates. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For warranty information, refer to the product documentation or contact the manufacturer directly.
