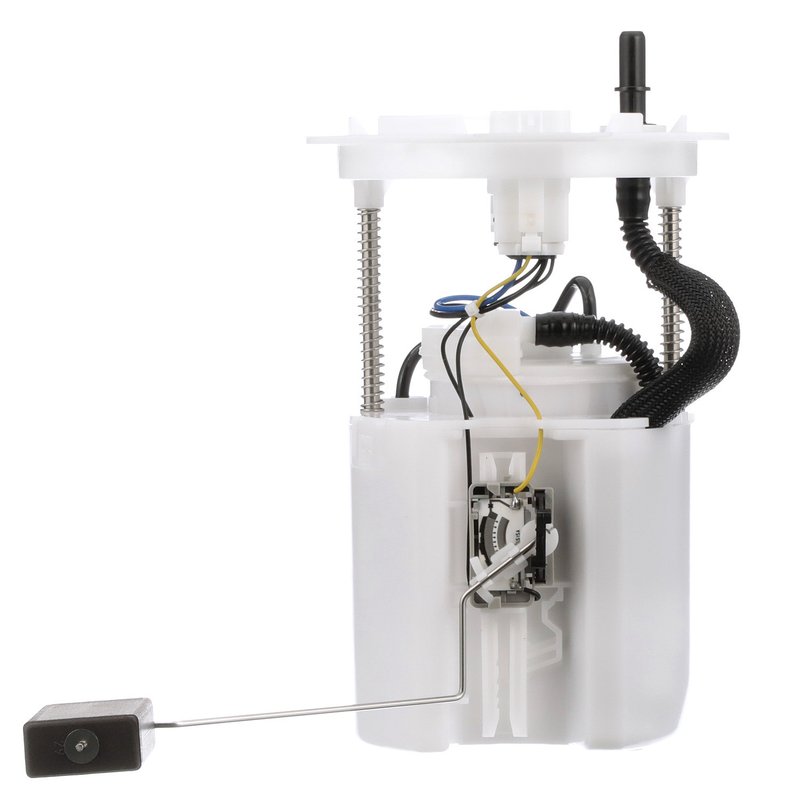

Delphi FG1668 Fuel Pump Module Assembly

Delphi FG1668 Fuel Pump Module Assembly

The Delphi FG1668 fuel pump module assembly is a standard replacement for gasoline applications that require an in-tank electric pump with an integrated fuel level sender and pressure regulator. Built from Delphi's OE experience, it is engineered for 12-volt systems and direct service on select Ford Fusion models from 2013-2020.

Fits 2013-2020 Ford Fusion, N/A. This Delphi FG1668 fuel pump module assembly is also a direct-reference option for related OE and aftermarket numbers used on the same application.

Key Features

• In-tank electric fuel pump module assembly for gasoline fuel systems
• Integrated fuel pressure regulator included
• Fuel level sender assembly included for tank level reporting
• Quick-connect outlet with one outlet and 0.375 in. outside diameter
• 12.0-volt operation with blade terminals and male terminal design
• Internal strainer included; fuel pump module ships with float arm, seal, and instruction sheet
• Standard replacement grade for service on select Ford Fusion vehicles
• Maximum pressure rated to 95.0 psi with average flow rating of 26

Detailed Description

Delphi FG1668 is a fuel pump module assembly built for in-tank installation on gasoline vehicles. It combines the pump, regulator, strainer, and fuel level sender into one service assembly, helping restore fuel delivery and tank level signal performance on the vehicle. The module is specified with a 58 psi system pressure rating, 95.0 psi maximum pressure, 8-amp average current draw, and a quick-connect outlet for straightforward fuel line connection.

For Ford Fusion fuel system service, this part number FG1668 provides a direct-fit replacement path for 2013-2020 models listed in the fitment data. Delphi's OE heritage and broad aftermarket coverage support consistent part design across a wide range of vehicle applications. This part cross-references Carter P76898M for the same application.

Common Problems This Part Can Address

• Hard starting caused by weak or inconsistent fuel delivery
• Engine stalling from low fuel pressure
• Fuel gauge inaccuracies from a worn sender assembly
• Loss of pump output from an aging in-tank module
• Fuel pressure regulator-related drivability concerns

Installation Notes and Tips

Before installing this Ford Fusion fuel pump module assembly, clean the fuel tank to reduce the risk of contamination entering the new pump. Delphi recommends using fuel tank cleaning kit FC01 for this service. Verify the electrical connector, quick-connect outlet, and in-tank configuration before installation, and confirm the vehicle uses a gasoline fuel system.

Because the module includes a fuel level sender assembly and internal strainer, inspect the tank and fuel lines for debris or restriction during replacement. The package contents include the fuel pump module assembly with float arm, seal, and instruction sheet.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplier knowledge from work with major automakers. That OE background is built into the aftermarket design of the FG1668 fuel pump module assembly for select Ford Fusion applications.
