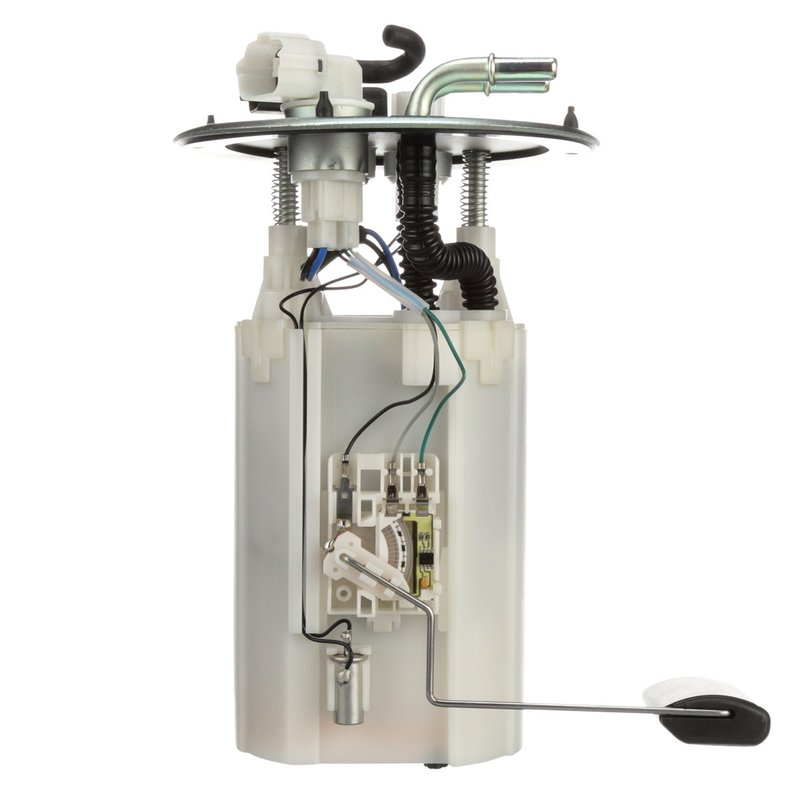

Delphi FG1670 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Kia Sedona

The Delphi FG1670 fuel pump module assembly is designed specifically for Kia Sedona models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Outlet outside diameter: 0.313 inches for precise fuel line connection
• Operates on 12.0 volts compatible with standard automotive electrical systems
• Designed for gasoline fuel type with internal strainer included
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Maximum pressure rating of 85 psi and system pressure of 44 psi for stable fuel delivery
• Blade-type male terminals with 5-terminal quantity for secure electrical connections
• Quick connect outlet type with two outlets for efficient fuel flow
• Regulator and vapor pressure sensor included to maintain proper fuel system operation
• Average current draw of 8 amps and flow rating of 40 for consistent performance

Detailed Product Description

The Delphi FG1670 fuel pump module assembly is engineered as a standard replacement part for Kia Sedona vehicles. This in-tank electric fuel pump features an internal strainer to prevent contaminants from entering the fuel system, enhancing longevity and reliability. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. With a maximum pressure of 85 psi and a regulated system pressure of 44 psi, this fuel pump module maintains steady fuel delivery under various driving conditions. The quick connect outlet design and blade-type male terminals simplify installation and ensure secure electrical and fuel line connections. Additionally, the vapor pressure sensor integrated into the module supports proper fuel vapor management, contributing to emissions control.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Kia Sedona models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions caused by clogged strainers
• Improves overall fuel system reliability and vehicle drivability

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Kia Sedona model year before installation
• Handle the fuel pump module carefully to avoid damage to the float arm and terminals
• Use appropriate tools to remove and install the lock ring if applicable, noting this module does not include a lock ring
• Check all electrical connections for secure fit and corrosion-free contacts

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1670 is a standard replacement grade part designed to provide reliable performance consistent with factory standards. This product includes a fuel level sender assembly and vapor pressure sensor to ensure comprehensive fuel system functionality. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
