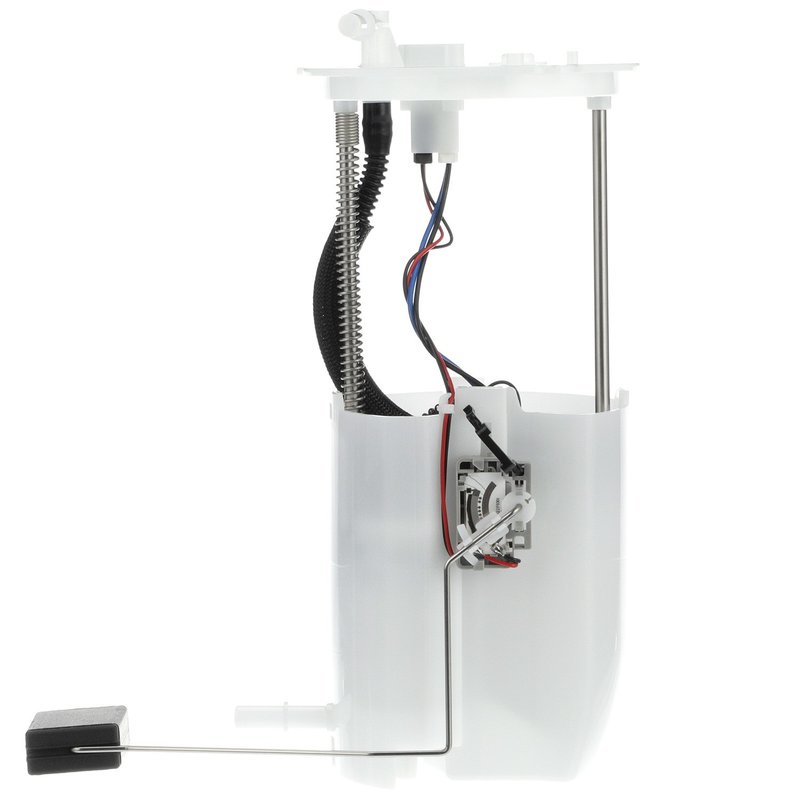

Delphi FG1671 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Mazda CX-7

The Delphi FG1671 fuel pump module assembly is designed specifically for Mazda CX-7 models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump module assembly with part number FG1671
• Compatible with Mazda CX-7 fuel systems
• 12.0-volt operation with a maximum pressure of 95 psi
• Includes internal strainer and regulator for fuel filtration and pressure control
• Quick connect outlet with 0.375-inch outside diameter
• Blade-type terminals, 4 male terminals for secure electrical connection
• Average flow rating of 55 liters per hour and system pressure of 58 psi
• Standard replacement grade for reliable performance

Technical Details and Features

The Delphi FG1671 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type to prevent contaminants from entering the fuel system, enhancing durability. The module includes a built-in regulator to maintain consistent fuel pressure up to 95 psi, ensuring stable engine operation. The outlet is a quick connect type with a 0.375-inch outside diameter, facilitating straightforward installation and secure fuel line connection. Electrical connections use four male blade terminals, providing reliable power delivery with resistance values ranging from 8 ohms when full to 66 ohms when empty. This fuel pump module is intended for in-tank installation, optimizing fuel delivery and reducing noise.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Mazda CX-7 vehicles
• Addresses issues such as engine stalling or hesitation due to inconsistent fuel pressure
• Resolves fuel delivery problems caused by clogged or damaged internal strainers
• Eliminates electrical connection failures with secure blade terminal design
• Improves fuel system reliability and engine performance

Installation Notes and Tips

When installing the Delphi FG1671 fuel pump module assembly, ensure the vehicle’s fuel tank is properly depressurized to avoid fuel spillage. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure to prevent leaks. Since the module does not include a gasket or lock ring, reuse the original components or replace them as needed to maintain a proper seal. Electrical connections should be checked for corrosion or damage before installation. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures specific to the Mazda CX-7.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for the Mazda CX-7. It undergoes rigorous testing to ensure consistent fuel flow, pressure regulation, and electrical performance. While specific warranty details are not provided, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
