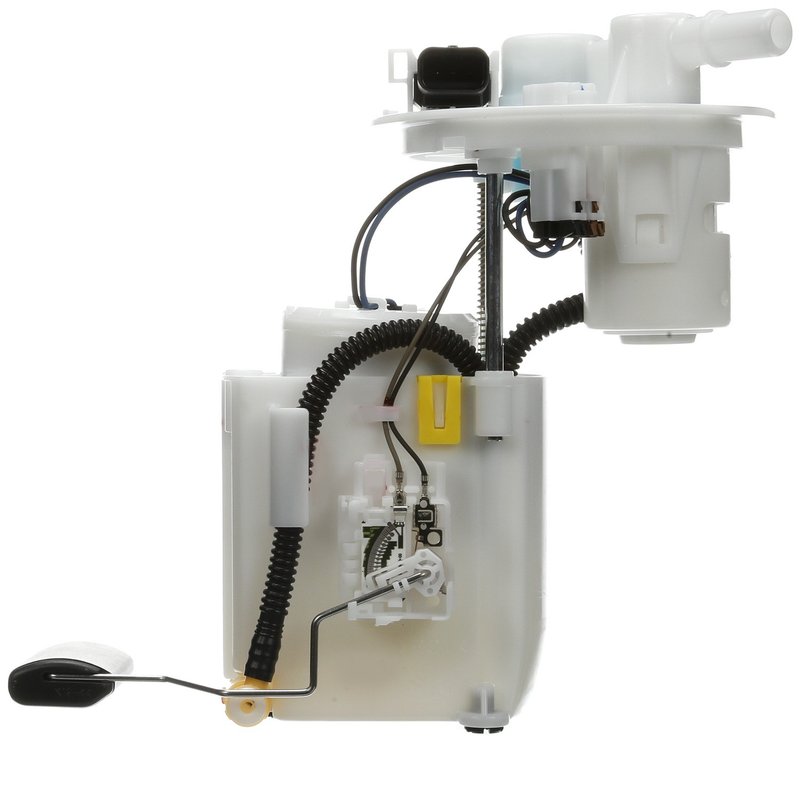

Delphi FG1672 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Hyundai and Kia Vehicles

The Delphi FG1672 fuel pump module assembly is designed to provide consistent fuel delivery for select Hyundai and Kia models. Engineered for in-tank installation, this electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

• Compatible with Hyundai Elantra, Elantra Coupe, Elantra GT, Kia Forte, Forte5, Forte Koup, and Veloster
• 12.0 Volt electric pump with a maximum pressure of 71 psi and system pressure of 65 psi
• Includes fuel level sender assembly with float arm and internal strainer for clean fuel intake
• Equipped with a regulator and vapor pressure sensor for optimal fuel system management
• Features quick connect outlets (0.313 inch outside diameter) and four male blade terminals
• Comes with gasket and seal for secure installation; lock ring not included

Technical Details and Performance Specifications

The Delphi FG1672 fuel pump module assembly operates at an average current draw of 7 amps and delivers an average flow rating of 26 liters per hour. It is designed for gasoline fuel systems and includes an internal strainer to prevent debris from entering the fuel system. The module features two quick connect outlets and four male blade terminals to ensure reliable electrical connections. Resistance values range from 200 ohms when empty to 8 ohms when full, supporting accurate fuel level readings. This standard replacement grade pump module is engineered for in-tank installation, providing consistent fuel pressure and flow for smooth engine operation.

Applications and Common Issues Addressed

• Restores proper fuel delivery in Hyundai Elantra and Kia Forte models experiencing fuel starvation
• Resolves fuel pressure drops causing engine hesitation or stalling
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates issues related to clogged or damaged internal strainers
• Addresses vapor pressure sensor malfunctions affecting emissions control

Installation Notes and Tips

Installation of the Delphi FG1672 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the included four male blade terminals and verify the gasket and seal are properly seated to prevent leaks. The quick connect outlets simplify fuel line attachment, but confirm compatibility with existing fuel lines. Follow vehicle-specific service manuals for safe handling of fuel system components and proper torque specifications.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1672 part number undergoes rigorous testing to ensure durability and reliable performance in Hyundai and Kia fuel systems. This product includes a standard replacement warranty covering defects in materials and workmanship under normal use conditions.
