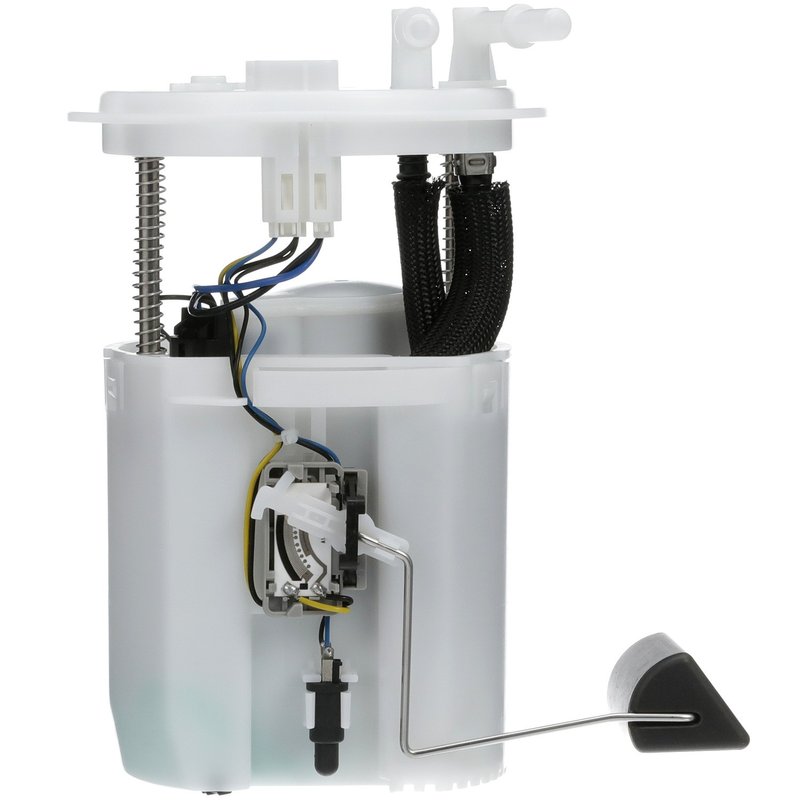

Delphi FG1675 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Subaru Vehicles

The Delphi FG1675 fuel pump module assembly is designed specifically for Subaru models including the B9 Tribeca, Legacy, Outback, and Tribeca. This in-tank electric fuel pump ensures consistent fuel delivery and pressure for optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 80 psi and system pressure of 50 psi
• Internal strainer and quick connect outlet type for efficient fuel flow
• Compatible with gasoline fuel type
• Blade terminal type with 6 male terminals
• Average flow rating of 41 and average current draw of 10 amps
• Regulator and strainer included for precise fuel management

Technical Details and Features

The Delphi FG1675 fuel pump module assembly is engineered to meet the fuel delivery requirements of Subaru B9 Tribeca, Legacy, Outback, and Tribeca models. Featuring an internal strainer inlet and quick connect outlets (two in quantity) with a 0.375-inch outside diameter, this module supports efficient fuel flow and filtration. The pump operates at 12 volts and maintains a system pressure of 50 psi, with a maximum pressure capacity of 80 psi. It includes a fuel level sender assembly with a float arm to provide accurate fuel level readings. The blade-type terminals (6 male terminals) ensure secure electrical connections. Resistance values range from 32 ohms when empty to 2 ohms when full, supporting reliable operation under varying fuel levels.

Compatible Subaru Models and Applications

• Subaru B9 Tribeca fuel pump replacement
• Fuel pump module assembly for Subaru Legacy
• Subaru Outback in-tank fuel pump module
• Replacement fuel pump for Subaru Tribeca

Installation Notes and Tips

When installing the Delphi FG1675 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. This module is designed for in-tank installation and includes a fuel level sender assembly, so proper alignment and connection of the float arm are essential for accurate fuel gauge readings. The quick connect outlet fittings simplify hose connections, but verify secure attachment to prevent leaks. Use appropriate tools for blade terminal connections and avoid damaging the internal strainer during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1675 is a standard replacement grade part, providing reliable performance for Subaru fuel systems. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship to ensure confidence in your purchase.
