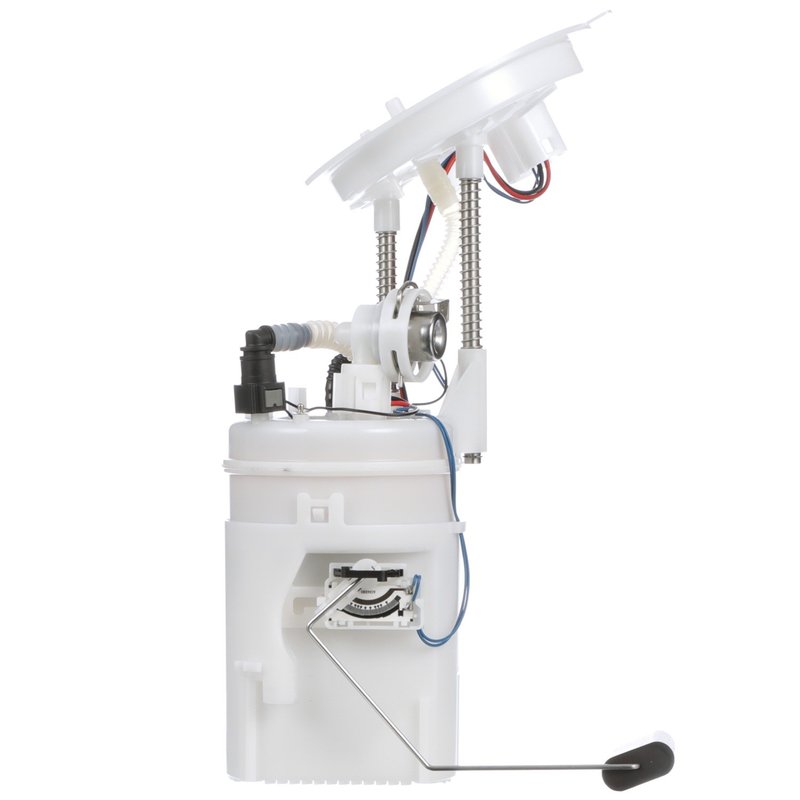

Delphi FG1681 Fuel Pump Module Assembly
| Brand | Delphi FG1681 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 35 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 990.0 |
| Resistance Ohms Full | 50.0 |
| Strainer Included | Yes |
| System Pressure | 87 psi |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | BMW · 10 vehicles |
Standard replacement. OE heritage built into an electric fuel pump module assembly.
Regulator included. Integrated fuel control for a complete module setup.
Seal included. Comes with a gasket or seal and strainer for installation.
Cross-references 16 11 7 285 450, 16 11 7 314 804 and DFG1681 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
BMW Fuel Pump Module Assembly
Delphi FG1681 is an in-tank fuel pump module assembly for select BMW X3 and BMW X4 applications. It combines the pump, fuel level sender assembly, regulator, strainer, and seal in one OE-style replacement package for direct service on the fuel system.
- In-tank electric fuel pump module assembly for gasoline applications
- 12.0-volt design with 87 psi system pressure
- Includes fuel pressure regulator, fuel level sender assembly, strainer, gasket/seal, and float arm
- Quick-connect outlet design with two outlets and 6-pin male terminals
- Standard replacement grade for service on BMW fuel delivery systems
- Delphi FG1681 cross-references DFG1681 and E9158M for the same application
OE-Style Fuel Delivery Performance
Built from Delphi’s OE heritage and fuel system experience, FG1681 is engineered for BMW fuel delivery service where accurate pressure and fuel level reporting matter. The module is specified for gasoline use, in-tank mounting, and an average flow rating of 35, with resistance values of 990 ohms empty and 50 ohms full for the sender circuit. This makes Delphi FG1681 a direct-fit fuel pump module assembly for BMW X3 and BMW X4 models listed below.
Vehicle Fitment
- Fits 2016-2018 BMW X4, N/A. Clean fuel tank before installing fuel pump to prevent future seal problems.
- Fits 2015 BMW X4, N/A. Without Auxiliary Heater; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
- Fits 2013 BMW X3, N/A. To 04/2012; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
- Fits 2011-2012 BMW X3, N/A. Clean fuel tank before installing fuel pump to prevent future seal problems.
- Fits 2015 BMW X3, N/A. Without Auxiliary Heater; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
- Fits 2016 BMW X3, N/A. Clean fuel tank before installing fuel pump to prevent future seal problems.
- Fits 2017 BMW X3, N/A. Without Auxiliary Heater; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
Common Fuel System Symptoms
- Hard starting or extended crank time
- Loss of fuel pressure under load
- Engine hesitation, stumble, or stalling
- Inaccurate fuel level readings
- Fuel pump noise or intermittent pump operation
Installation Notes
Verify the BMW X3 or BMW X4 application by year and engine configuration before installation. Clean the fuel tank thoroughly before replacing the module, especially on vehicles with contamination-related failures, and follow the included instruction sheet during service. The module uses a quick-connect outlet and pin-style terminals, so connector and line routing should be checked carefully during reassembly.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-focused engineering and aftermarket coverage drawn from its long history supplying automakers. FG1681 is a standard replacement part for BMW fuel system repair and service.
| Year | Make | Model | Submodel | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | BMW | X4 | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | BMW | X3 | sDrive28i | GAS | N/A | without Auxiliary Heater; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2017 | BMW | X4 | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | BMW | X3 | sDrive28i | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | BMW | X4 | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | BMW | X3 | sDrive28i | GAS | N/A | without Auxiliary Heater; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2015 | BMW | X4 | — | — | N/A | without Auxiliary Heater; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2013 | BMW | X3 | — | — | N/A | To 04/2012; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2012 | BMW | X3 | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2011 | BMW | X3 | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
