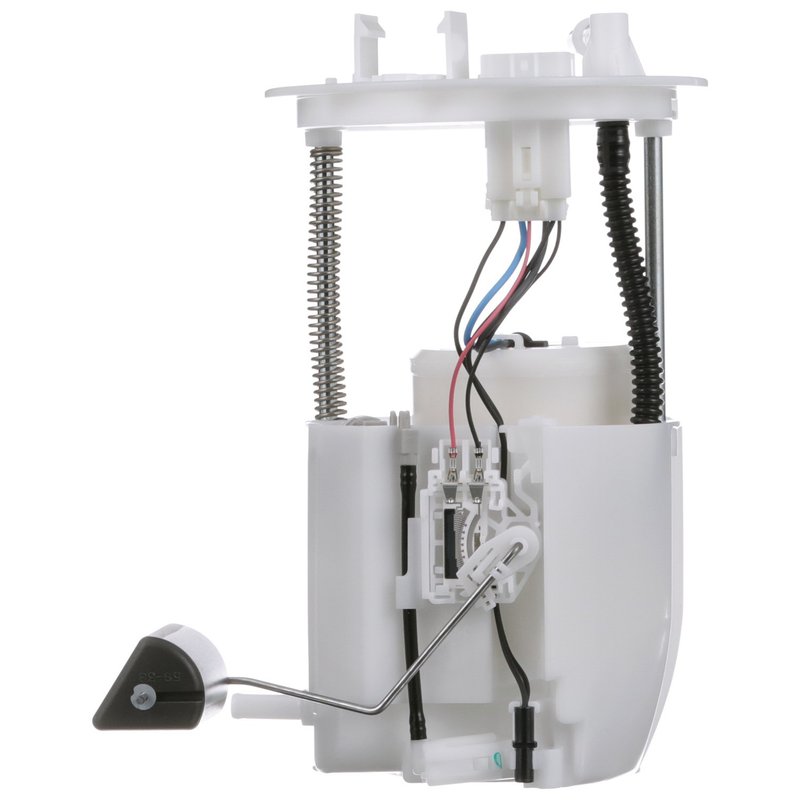

Delphi FG1688 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Mitsubishi Endeavor

The Delphi FG1688 fuel pump module assembly is designed specifically for the Mitsubishi Endeavor, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and system pressure for gasoline engines.

Key Features of Delphi FG1688 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel flow
• Operates on 12.0 volts suitable for standard automotive electrical systems
• Includes an internal fuel pressure regulator for maintaining system pressure up to 102 psi
• Equipped with a built-in fuel level sender assembly for accurate fuel gauge readings
• Features a quick connect outlet type with one outlet for easy installation
• Includes an internal strainer to prevent debris from entering the fuel system
• Blade-type male terminals with five terminal quantity for secure electrical connections
• Designed for gasoline fuel type applications
• Standard replacement grade ensuring reliable performance
• Comes with a gasket or seal and strainer included for proper sealing and filtration

Detailed Description of the Delphi FG1688 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1688) is engineered as an in-tank electric pump designed to meet the fuel delivery requirements of the Mitsubishi Endeavor. It operates at 12 volts and maintains a system pressure of 45 psi, with a maximum pressure rating of 102 psi, ensuring consistent fuel supply under various driving conditions. The module includes an internal fuel pressure regulator and a fuel level sender assembly, which provides accurate fuel level data to the vehicle’s dashboard. The quick connect outlet and blade-type male terminals simplify electrical and fuel line connections, while the internal strainer protects the fuel system from contaminants. The pump’s resistance ranges from 7 ohms when full to 35 ohms when empty, reflecting its operational status. This assembly is a standard replacement part designed to restore proper fuel delivery and fuel gauge function in the Mitsubishi Endeavor.

Common Applications and Issues Resolved

• Restores fuel delivery in Mitsubishi Endeavor models experiencing fuel starvation or engine hesitation
• Replaces faulty fuel level sender assemblies causing inaccurate fuel gauge readings
• Solves issues related to inconsistent fuel pressure affecting engine performance
• Addresses fuel pump failures due to clogged strainers or internal component wear
• Eliminates electrical connection problems with blade-type terminals ensuring stable current draw

Installation Notes and Tips

When installing the Delphi FG1688 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. Verify the gasket or seal is correctly positioned to prevent leaks. Connect the blade-type male terminals securely and confirm the quick connect outlet is firmly attached to the fuel line. It is recommended to inspect the fuel tank for debris before installation to prolong the life of the internal strainer. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM specifications and undergo rigorous quality control testing. The FG1688 is a standard replacement grade part designed for durability and reliable operation in the Mitsubishi Endeavor. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
