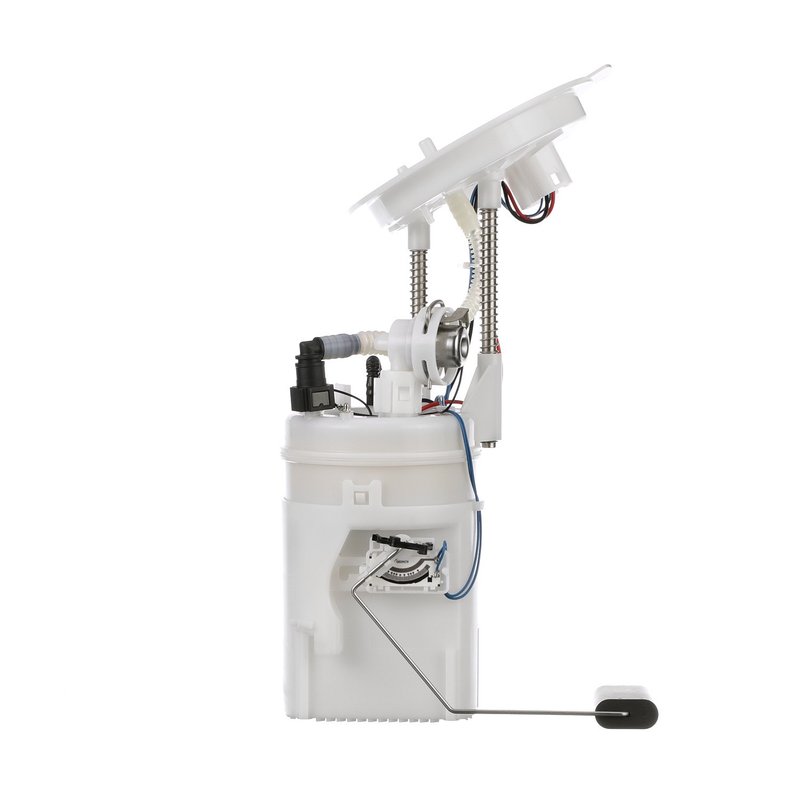

Delphi FG1696 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for BMW X3

The Delphi FG1696 fuel pump module assembly is designed specifically for BMW X3 models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

• 12.0 Volt electric fuel pump with integrated regulator
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet (0.313 inch diameter)
• Maximum pressure rating of 73 psi and system pressure of 44 psi
• Pin-type male terminals with 6-terminal connections
• Includes gasket and seal for secure installation
• Average flow rating of 45 liters per hour and average current draw of 10 amps

Detailed Product Features and Specifications

The Delphi FG1696 fuel pump module assembly is engineered for gas-fueled BMW X3 vehicles requiring a standard replacement part. This module features an internal electric pump designed to maintain consistent fuel pressure up to 73 psi, with a system operating pressure of 44 psi. The integrated fuel level sender assembly provides accurate fuel level readings, supported by resistance values ranging from 50 ohms (full) to 990 ohms (empty). The pump includes an internal strainer inlet to prevent debris from entering the fuel system and a quick connect outlet for efficient fuel line attachment. The six-pin male terminal configuration ensures secure electrical connections, while the included gasket and seal help maintain a leak-free installation.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in BMW X3 models
• Resolves inconsistent fuel pressure or engine stalling issues
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel delivery interruptions caused by clogged strainers
• Suitable for in-tank fuel pump module replacements requiring a 12V electric pump

Installation Notes and Tips

When installing the Delphi FG1696 fuel pump module assembly, ensure the vehicle's fuel tank is properly drained and depressurized. Use the included gasket and seal to prevent leaks and verify that the six-pin male terminals are correctly connected to the vehicle's wiring harness. The quick connect outlet simplifies fuel line attachment, but confirm a secure fit to avoid fuel leaks. This module is designed for in-tank installation, so handle the float arm carefully to maintain accurate fuel level readings.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1696 part undergoes rigorous testing to ensure reliable operation under normal driving conditions. This standard replacement grade component includes a fuel level sender assembly and is backed by Delphi's quality assurance protocols. Please refer to Delphi's warranty terms for specific coverage details.
