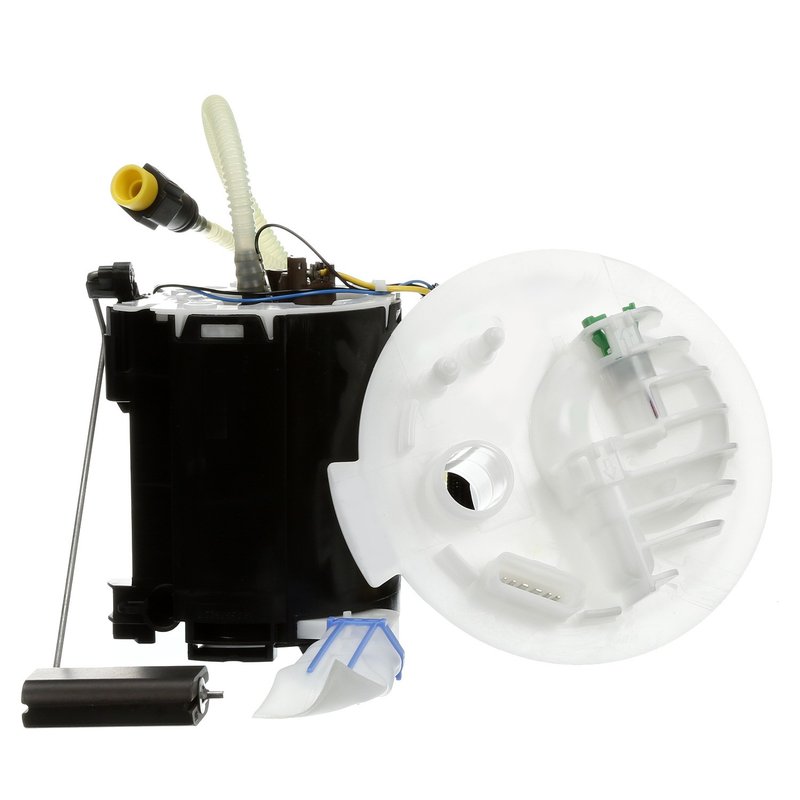

Delphi FG1697 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Land Rover LR2

The Delphi FG1697 fuel pump module assembly is designed specifically for Land Rover LR2 models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components tailored to your vehicle's fuel system requirements.

Key Features of Delphi FG1697 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel flow connection
• Operates on 12.0 volts compatible with standard automotive electrical systems
• Designed for gasoline fuel type applications
• Includes built-in fuel pressure regulator for maintaining system pressure up to 95 psi
• Blade-type terminals with six male connectors for secure electrical connections
• Equipped with an external strainer inlet and female quick connect outlet
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Average flow rating of 53 liters per hour to meet engine fuel demands
• Standard replacement grade suitable for maintaining original equipment performance

Detailed Description of the Delphi FG1697 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1697) is engineered as an in-tank electric pump designed to fit Land Rover LR2 vehicles. It features a built-in regulator to maintain a consistent system pressure of 54 psi, ensuring optimal fuel delivery to the engine. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level data to the vehicle’s dashboard. The pump’s blade-type terminals (six male connectors) facilitate straightforward electrical installation. The external strainer inlet protects the pump from debris, while the female quick connect outlet ensures a secure fuel line connection. With an average current draw of 10 amps and resistance values ranging from 51 ohms (full) to 990 ohms (empty), this module is designed for reliable operation within the Land Rover LR2’s fuel system specifications.

Common Applications and Issues Addressed

• Replacement of failing or noisy fuel pumps in Land Rover LR2 models
• Resolving inconsistent fuel pressure or engine stalling issues
• Fixing inaccurate fuel gauge readings due to faulty sender assemblies
• Addressing fuel delivery interruptions caused by clogged strainers or worn components
• Upgrading to a standard replacement module to restore factory fuel system performance

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Land Rover LR2 model year and fuel system specifications
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Use appropriate tools to remove and reinstall the lock ring or retaining components if applicable
• Check all fuel line connections for leaks after installation and before starting the engine

Quality Assurance and Warranty Information

The Delphi FG1697 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It undergoes rigorous testing to ensure durability and reliable performance in Land Rover LR2 vehicles. This standard replacement part comes with a limited warranty covering defects in materials and workmanship, providing confidence in its long-term operation.
