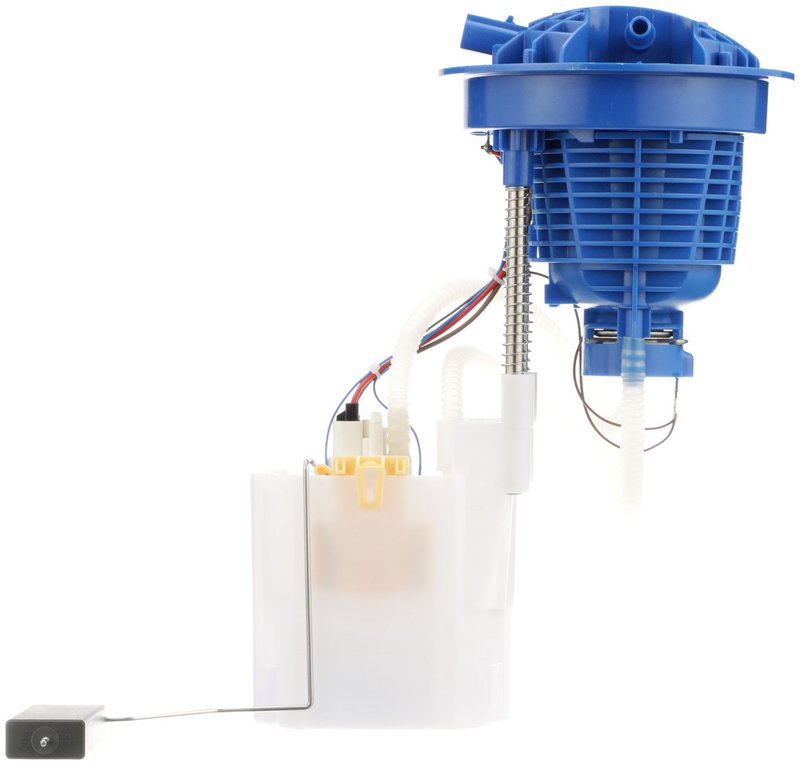

Delphi FG1698 Fuel Pump Module Assembly

Delphi FG1698 Fuel Pump Module Assembly Overview

The Delphi FG1698 fuel pump module assembly is designed for reliable fuel delivery in Chrysler and Dodge vehicles, specifically the Aspen and Durango models. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Maximum pressure rating of 95 psi and system pressure of 44 psi
• Includes internal strainer and fuel level sender assembly with float arm
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Four male blade terminals for secure electrical connections
• Compatible with flex fuel systems
• Comes with gasket/seal and instruction sheet for installation guidance

Technical Details and Features

The Delphi FG1698 fuel pump module assembly operates at 12 volts and features an electric pump type designed for in-tank installation. It includes an internal strainer to prevent debris from entering the fuel system and a fuel level sender assembly to provide accurate fuel gauge readings. The pump supports flex fuel, making it suitable for vehicles running on ethanol blends. The outlet is a quick connect type with a 0.375-inch outside diameter, facilitating straightforward fuel line attachment. Electrical connections are made via four male blade terminals, ensuring a secure and reliable interface. The module also includes a regulator to maintain consistent fuel pressure, rated up to 95 psi, with a system pressure of 44 psi for steady fuel delivery.

Compatible Vehicles and Applications

• Designed for Chrysler Aspen models requiring a standard replacement fuel pump module
• Compatible with Dodge Durango vehicles equipped with flex fuel systems
• Ideal for addressing fuel delivery issues in these specific makes and models

Common Issues Addressed by Delphi FG1698

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure fluctuations affecting engine performance
• Clogged fuel strainer leading to restricted fuel flow
• Wear and tear from extended use in flex fuel applications

Installation Notes and Tips

Installation of the Delphi FG1698 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket or seal included is properly seated to prevent fuel leaks. Verify electrical connections match the four male blade terminals and confirm the quick connect outlet is securely attached to the fuel line. Follow the included instruction sheet carefully to maintain safety and proper function.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Chrysler and Dodge vehicles. It includes a fuel level sender assembly and internal strainer to ensure durability and reliable operation. While specific warranty details are not provided, Delphi parts typically adhere to industry standards for quality and performance.
