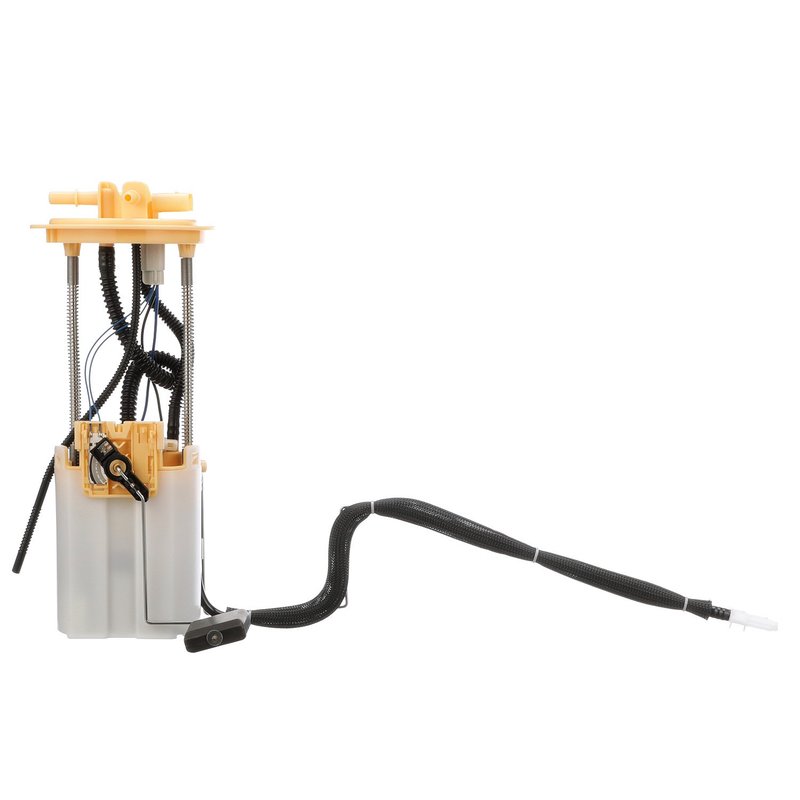

Delphi FG1707 Fuel Pump Module Assembly

Delphi FG1707 Fuel Pump Module Assembly Overview

The Delphi FG1707 fuel pump module assembly is designed for diesel-powered vehicles, specifically compatible with Dodge and Mercedes-Benz Sprinter 2500, Sprinter 3500, and Sprinter 3500XD models. This in-tank electric fuel pump module ensures reliable fuel delivery with integrated components for efficient operation.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Dodge and Mercedes-Benz Sprinter 2500, 3500, and 3500XD diesel models
• 12.0 Volt operation with a maximum pressure of 101 psi and system pressure of 58 psi
• Includes regulator, internal strainer, gasket, and fuel pump float arm
• Blade-type male terminals with four connections for secure wiring
• Quick connect outlet with 0.375 inch outside diameter and three outlet ports
• Standard replacement grade with resistance values of 50 ohms empty and 870 ohms full

Technical Details and Features

The Delphi FG1707 fuel pump module assembly operates at 12 volts and is engineered for diesel fuel systems. It features an internal strainer inlet and a quick connect outlet type, facilitating efficient fuel flow and easy installation. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump’s average current draw is 10 amps, with an average flow rating of 40 liters per hour, supporting consistent fuel delivery under various operating conditions. The assembly comes with a gasket or seal to ensure a proper fit and prevent leaks. The blade-type male terminals with four connections provide reliable electrical contact, while the absence of a lock ring simplifies installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Dodge Sprinter 2500 diesel models
• Mercedes-Benz Sprinter 2500 diesel models
• Mercedes-Benz Sprinter 3500 diesel models
• Mercedes-Benz Sprinter 3500XD diesel models

It is designed to replace the original fuel pump module in these vehicles, ensuring proper fuel delivery and system pressure for optimal engine performance.

Common Issues Addressed by the Delphi FG1707

• Fuel delivery interruptions causing engine stalling or hesitation
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure affecting engine performance and efficiency
• Fuel pump failure resulting in no-start conditions
• Contaminated fuel flow due to clogged or damaged strainers

Installation Notes and Tips

Installation of the Delphi FG1707 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket or seal to maintain a secure and leak-free fit. Verify that the blade-type male terminals are properly connected to the vehicle’s wiring harness. Since this module includes a fuel level sender assembly, confirm proper float arm movement to ensure accurate fuel gauge readings. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty

The Delphi FG1707 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications. It undergoes rigorous testing to ensure durability and reliable performance in diesel fuel systems. This product includes a regulator and internal strainer to maintain consistent fuel pressure and filtration. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
