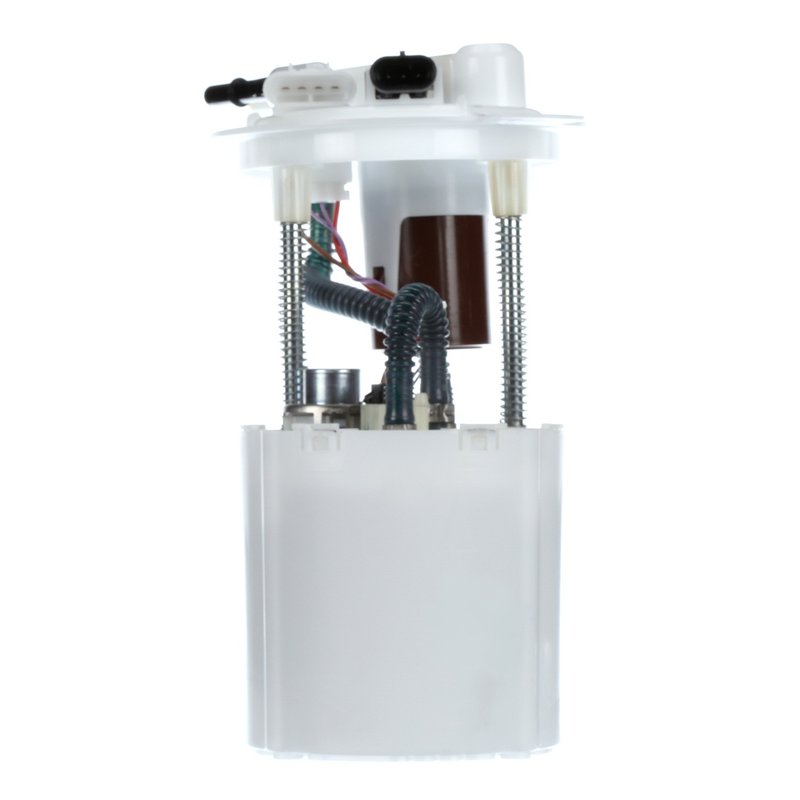

Delphi FG1709 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Uplander

The Delphi FG1709 fuel pump module assembly is designed specifically for Chevrolet Uplander models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow to maintain optimal engine performance.

• Compatible with Chevrolet Uplander vehicles
• Electric in-tank fuel pump module assembly
• Includes regulator, gasket, and internal strainer
• Operates at 12 volts with a maximum pressure of 64 psi
• Quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connection
• System pressure rated at 58 psi with vapor pressure sensor included

Technical Specifications and Features

The Delphi FG1709 fuel pump module assembly operates on a 12.0-volt system and is designed for gasoline fuel types. It features an internal strainer inlet and a quick connect outlet with an outside diameter of 0.375 inches, ensuring efficient fuel flow. The module includes a built-in fuel pressure regulator and a vapor pressure sensor to maintain consistent system pressure at 58 psi, with a maximum pressure rating of 64 psi. Electrical connections are made via four male blade terminals, providing reliable power delivery. The assembly also comes with a gasket and strainer to protect the fuel system from contaminants.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Chevrolet Uplander
• Resolves issues with inconsistent fuel pressure or engine stalling
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection problems with secure blade terminals
• Improves fuel system reliability and engine performance

Installation Notes and Tips

Installation of the Delphi FG1709 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Verify that all electrical connections are secure and that the gasket is properly seated to prevent fuel leaks. Use appropriate tools to avoid damage to the quick connect outlets and terminals. Follow the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump module assembly engineered to meet OEM specifications for Chevrolet Uplander vehicles. The FG1709 part number undergoes rigorous testing to ensure durability and performance under normal operating conditions. This product includes a warranty that covers defects in materials and workmanship, providing confidence in its reliability as a replacement fuel pump solution.
