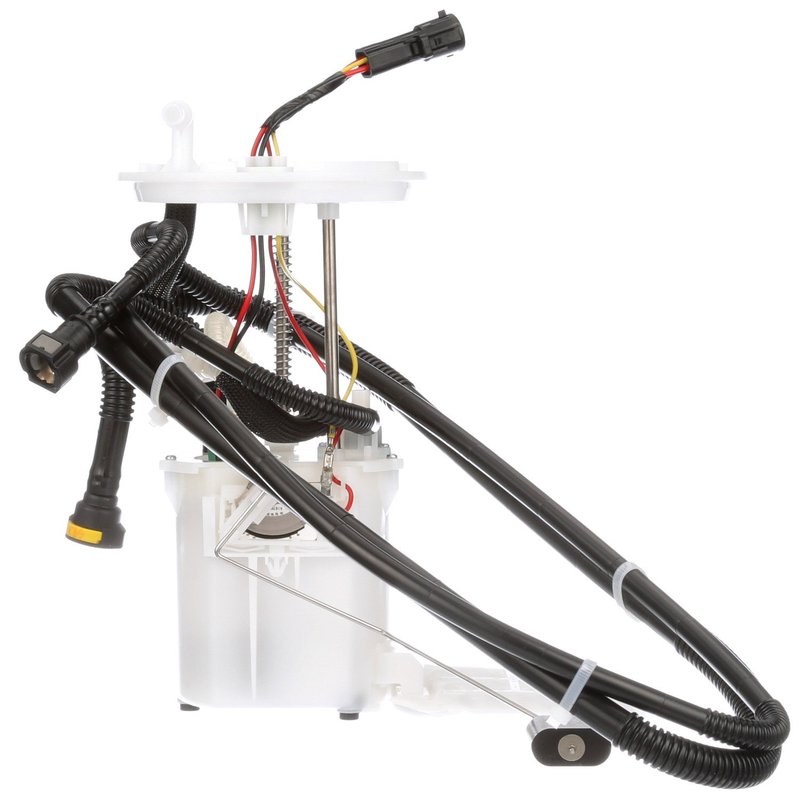

Delphi FG1712 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Jaguar Vehicles

The Delphi FG1712 fuel pump module assembly is designed specifically for Jaguar S-Type, Vanden Plas, and XJ8 models. This in-tank electric fuel pump ensures reliable fuel delivery and accurate fuel level readings, maintaining optimal engine performance.

• 12.0 Volt electric fuel pump with 75 GPH average flow rating
• Includes fuel level sender assembly with float arm for precise fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter
• Regulator included to maintain system pressure at 80 psi
• Four male pin terminals for secure electrical connections
• Standard replacement grade for dependable performance

Technical Details and Features

The Delphi FG1712 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an external strainer inlet type that helps filter contaminants before fuel enters the pump, extending component life. The quick connect outlet with a 0.375 inch outside diameter allows for straightforward installation and secure fuel line attachment. The module includes a regulator to maintain a consistent system pressure of 80 psi, ensuring steady fuel flow to the engine. The fuel level sender assembly with float arm provides accurate fuel level readings, compatible with the Jaguar S-Type, Vanden Plas, and XJ8 fuel systems. Electrical connections are made via four male pin terminals, designed for reliable and corrosion-resistant contact. This standard replacement grade pump module is built to meet OEM specifications for dependable operation.

Compatible Jaguar Models and Applications

This fuel pump module assembly is compatible with the following Jaguar models:

• Jaguar S-Type
• Jaguar Vanden Plas
• Jaguar XJ8

It is intended for use in gasoline fuel systems requiring an in-tank electric fuel pump with integrated fuel level sender.

Common Issues Addressed by Delphi FG1712

• Intermittent or complete fuel delivery failure
• Inaccurate fuel gauge readings due to faulty sender assembly
• Fuel pressure inconsistencies affecting engine performance
• Clogged fuel inlet caused by missing or damaged strainer
• Electrical connection problems from worn or corroded terminals

Installation Notes and Tips

• Ensure vehicle ignition is off and battery disconnected before installation
• Verify compatibility with Jaguar S-Type, Vanden Plas, or XJ8 before proceeding
• Handle the fuel pump module carefully to avoid damage to the float arm and strainer
• Use proper tools to disconnect and reconnect the quick connect outlet securely
• Check all electrical connections for tightness and corrosion-free contact

Quality Assurance and Warranty

The Delphi FG1712 fuel pump module assembly is manufactured to meet or exceed OEM standards for quality and durability. It undergoes rigorous testing to ensure consistent fuel flow and accurate fuel level readings. This product is offered as a standard replacement part and typically includes a limited warranty against defects in materials and workmanship. Please refer to the product documentation for specific warranty details.
