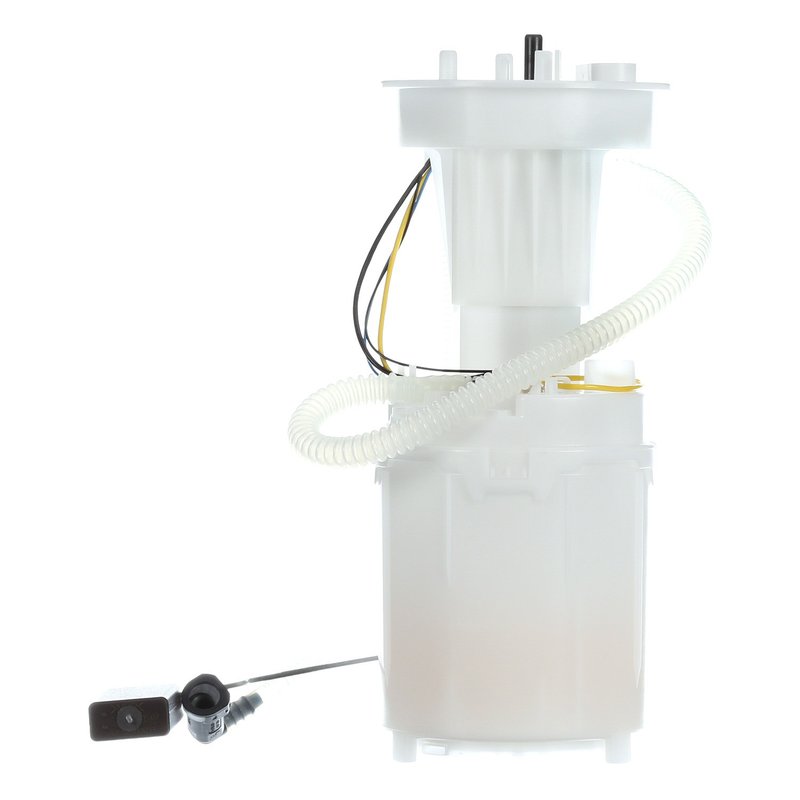

Delphi FG1719 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Audi A4

The Delphi FG1719 fuel pump module assembly is designed specifically for Audi A4 models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• Includes internal strainer and fuel level sender assembly
• Compatible with gasoline fuel systems
• Quick connect outlet type with 0.313 inch outside diameter
• Regulator included for maintaining 58 psi system pressure
• Four male blade terminals for secure electrical connections
• Average flow rating of 52 liters per hour and 10 amps current draw

Technical Details and Features

The Delphi FG1719 fuel pump module assembly is an in-tank electric pump designed for gas-powered Audi A4 vehicles. It features an internal strainer inlet type to prevent debris from entering the fuel system, ensuring clean fuel delivery. The module includes a fuel level sender assembly with float arm for accurate fuel gauge readings. The regulator maintains a system pressure of 58 psi, supporting consistent engine operation. Electrical connections are made via four male blade terminals, providing reliable power delivery at 12 volts. The quick connect outlet with a 0.313 inch outside diameter allows for straightforward installation and secure fuel line attachment.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Audi A4 gas engines
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Suitable for standard replacement needs in fuel pump module assemblies

Installation Notes and Tips

Installation of the Delphi FG1719 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the four male blade terminals provided. The quick connect outlet facilitates easy attachment of fuel lines; verify the 0.313 inch diameter for compatibility. Since the module does not include a gasket or lock ring, reuse existing components or source replacements as needed. Follow manufacturer instructions carefully to avoid fuel leaks and ensure proper sealing.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM specifications for durability and performance. The FG1719 part is a standard replacement grade component designed to maintain factory fuel system standards. While specific warranty details may vary, Delphi products typically include coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
