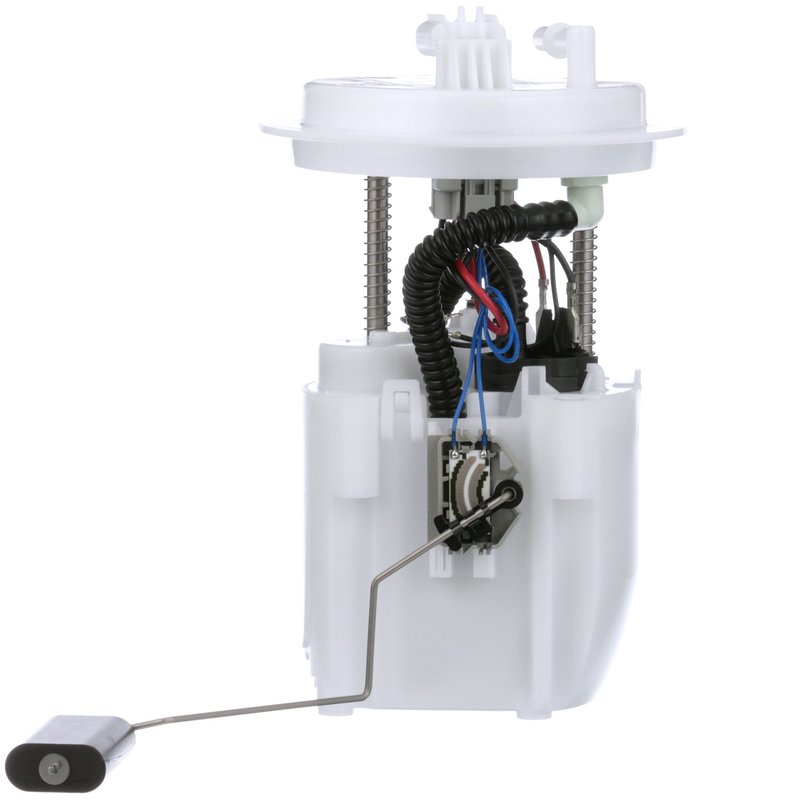

Delphi FG1720 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Dodge Journey

The Delphi FG1720 fuel pump module assembly is designed specifically for Dodge Journey models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Four male blade terminals for secure electrical connections
• Standard replacement grade with an average flow rating of 20 liters per hour
• System pressure rated at 58 psi for consistent fuel delivery

Technical Details and Features

The Delphi FG1720 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type and includes a strainer to prevent debris from entering the fuel system. The module comes with a fuel level sender assembly and a gasket or seal to ensure a leak-free installation. The outlet is a single quick connect type with an outside diameter of 0.375 inches, facilitating easy connection to the fuel line. Electrical connections are made via four male blade terminals, providing secure and reliable power delivery. The pump’s resistance ranges from 990 ohms when empty to 51 ohms when full, with an average current draw of 10 amps, supporting steady fuel flow at an average rating of 20 liters per hour.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Dodge Journey vehicles, making it a suitable replacement part for maintaining or restoring fuel delivery performance. The Delphi FG1720 is intended for in-tank installation and is designed to meet the specifications required by Dodge Journey fuel systems.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses fuel level sender failures for accurate fuel gauge readings
• Replaces faulty or worn electric fuel pumps to restore proper pressure
• Prevents fuel contamination with the included internal strainer
• Eliminates leaks with the included gasket or seal

Installation Notes and Tips

When installing the Delphi FG1720 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spills. Use the included gasket or seal to prevent leaks and verify that all electrical connections are secure with the four male blade terminals. The quick connect outlet simplifies fuel line attachment, but confirm a tight fit to avoid disconnections. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures to maintain safety and performance standards.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for durability and performance. The FG1720 is a standard replacement grade part, designed to provide reliable operation within the specified system pressure of 58 psi. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
