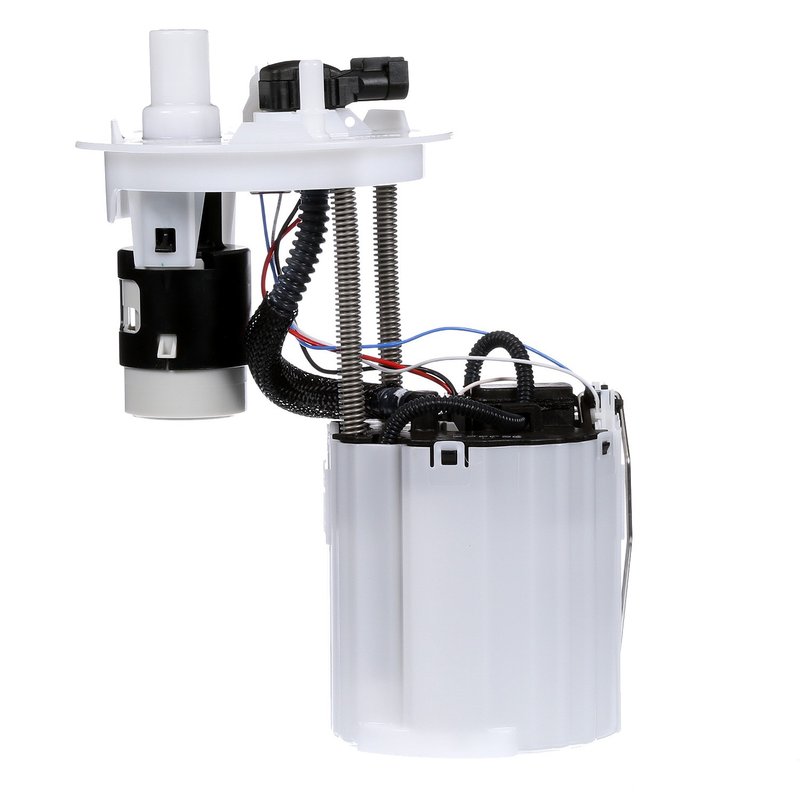

Delphi FG1737 Fuel Pump Module Assembly

Delphi FG1737 Fuel Pump Module Assembly Overview

The Delphi FG1737 fuel pump module assembly is designed specifically for Chevrolet Cruze and Cruze Limited models. This in-tank electric fuel pump ensures reliable fuel delivery with integrated components to maintain optimal engine performance.

• 12.0 Volt electric fuel pump with a maximum pressure of 84 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Internal strainer inlet and quick connect outlet with 0.375 inch outside diameter
• Regulator and vapor pressure sensor included for consistent fuel system pressure
• Four male blade terminals with gasket and seal included for secure installation
• Average flow rating of 35 and system pressure of 58 psi

Technical Details and Features

The Delphi FG1737 fuel pump module assembly is engineered for gasoline fuel systems in Chevrolet Cruze and Cruze Limited vehicles. It features an internal electric pump that operates at 12 volts, delivering an average flow rating of 35 liters per hour. The module includes a built-in fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump’s internal strainer inlet and quick connect outlet (0.375 inch outside diameter) help maintain clean fuel flow and simplify installation. The assembly also incorporates a regulator and vapor pressure sensor to maintain system pressure at 58 psi, with a maximum pressure rating of 84 psi. Four male blade terminals ensure reliable electrical connections, supported by included gaskets and seals to prevent leaks.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Chevrolet models:

• Chevrolet Cruze
• Chevrolet Cruze Limited

It is designed as a standard replacement part for fuel delivery system maintenance or repair, addressing issues related to fuel pressure, flow, and fuel level sensing.

Common Issues Addressed by Delphi FG1737

• Fuel delivery interruptions causing engine stalling or hesitation
• Inaccurate fuel gauge readings due to faulty sender assembly
• Low fuel pressure affecting engine performance
• Fuel pump noise or failure from worn internal components
• Fuel contamination due to damaged or clogged strainers

Installation Notes and Tips

Installation of the Delphi FG1737 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the included four male blade terminals and verify the gasket and seal are properly seated to prevent leaks. The quick connect outlet simplifies fuel line attachment, but confirm secure connections before reassembly. Follow vehicle-specific service manual instructions for safe handling of fuel system components and proper torque specifications.

Quality Assurance and Warranty

Delphi manufactures the FG1737 fuel pump module assembly to meet OEM standards for fit, form, and function. This standard replacement grade part includes a fuel level sender assembly, regulator, and vapor pressure sensor to ensure system compatibility. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
