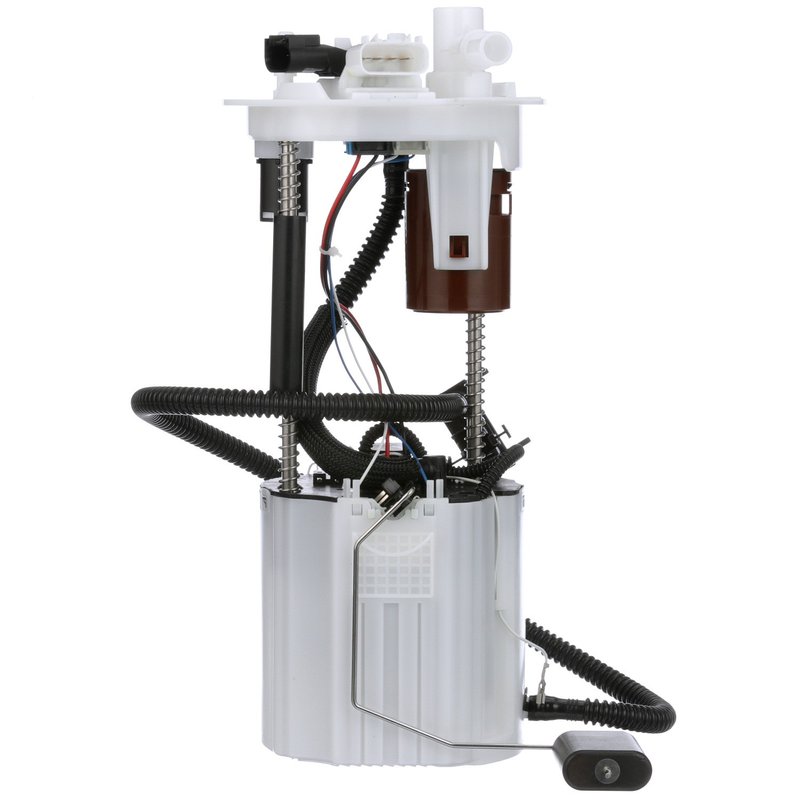

Delphi FG1740 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly for Saturn Vue

The Delphi FG1740 fuel pump module assembly is designed specifically for the Saturn Vue, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for efficient operation.

• 12.0 Volt electric fuel pump module with integrated fuel level sender assembly
• Compatible with gasoline fuel systems for Saturn Vue models
• Includes regulator, internal strainer, and vapor pressure sensor for optimal fuel management
• Quick connect outlet with 0.375 inch outside diameter and three outlet ports
• Four male blade terminals for secure electrical connections
• Standard replacement grade with included gasket and seals for proper installation
• Designed for left-side tank position with a system pressure rating of 58 psi

Product Details and Specifications

The Delphi FG1740 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in the Saturn Vue. It features an internal strainer inlet and an internal strainer to protect the pump from contaminants. The module includes a fuel pressure regulator and a vapor pressure sensor to maintain system pressure at 58 psi and support emissions control. The pump’s maximum pressure is rated at 80 psi, with a minimum flow rating of 26 liters per hour, ensuring consistent fuel delivery under various driving conditions.

Electrical connections are made via four male blade terminals, supporting an average current draw of 10 amps. The fuel level sender assembly is integrated with resistance values ranging from 40 ohms (full) to 250 ohms (empty), providing accurate fuel level readings. The quick connect outlet type with three outlets and a 0.375 inch outside diameter allows for straightforward fuel line attachment. This module is designed for installation inside the fuel tank on the left side of the Saturn Vue.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Saturn Vue vehicles
• Resolves inconsistent fuel pressure or delivery issues
• Fixes inaccurate fuel gauge readings due to sender assembly failure
• Addresses fuel system leaks with included gasket and seals
• Improves engine performance by maintaining proper fuel system pressure

Installation Notes and Tips

Installation of the Delphi FG1740 fuel pump module assembly requires removal of the fuel tank or access panel on the left side of the Saturn Vue. Ensure all electrical connections use the four male blade terminals and verify the quick connect outlets are securely attached to fuel lines. Replace all seals and gaskets included in the package to prevent leaks. Follow safety precautions when working with fuel systems, including depressurizing the fuel system before removal.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for the Saturn Vue. It includes a fuel level sender assembly, regulator, and vapor pressure sensor to ensure compatibility and reliable operation. Delphi provides quality assurance backed by industry standards, though specific warranty terms should be confirmed at the point of purchase.
