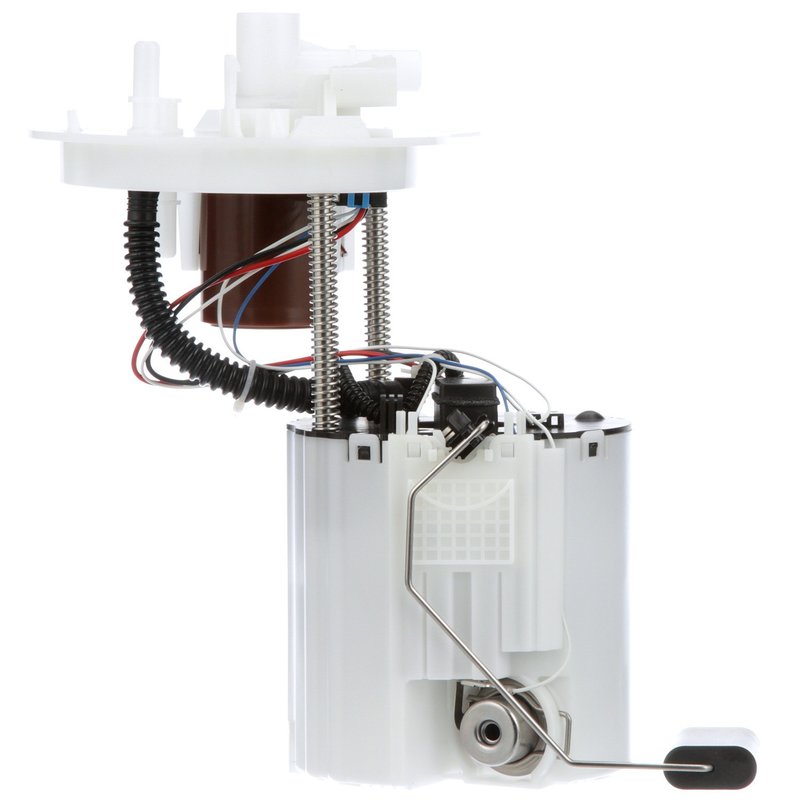

Delphi FG1741 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Chevrolet Sonic

The Delphi FG1741 fuel pump module assembly is designed specifically for Chevrolet Sonic models requiring a reliable in-tank electric fuel pump. This assembly includes a fuel level sender and is engineered to maintain consistent fuel delivery and pressure for optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet types
• Maximum pressure rating of 145 psi and system pressure of 58 psi
• Blade-type male terminals with four terminal quantity
• Gasket and seal included for secure installation
• Compatible with gasoline fuel systems
• Average flow rating of 34 liters per hour and average current draw of 11 amps

Technical Details and Features

The Delphi FG1741 fuel pump module assembly is an electric pump designed for in-tank installation, ensuring efficient fuel delivery for Chevrolet Sonic vehicles. It features a 0.375-inch outlet outside diameter with two quick connect outlets for secure fuel line attachment. The internal strainer inlet and included strainer help prevent debris from entering the fuel system, protecting engine components. The assembly comes with a regulator to maintain fuel pressure up to 145 psi, supporting consistent engine operation. The four blade-type male terminals provide reliable electrical connections, and the included gasket or seal ensures a tight fit to prevent leaks. This module also incorporates a fuel level sender assembly, allowing accurate fuel gauge readings.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pumps in Chevrolet Sonic models
• Resolves inconsistent fuel pressure or engine stalling issues
• Addresses fuel gauge inaccuracies due to faulty sender units
• Prevents fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection problems with blade terminal design

Installation Notes and Tips

When installing the Delphi FG1741 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. Use the included gasket or seal to secure the module and prevent leaks. Verify that the blade terminals are correctly connected to maintain electrical integrity. The quick connect outlets simplify fuel line attachment but confirm all connections are tight. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures to ensure proper fitment and function.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. The FG1741 is a standard replacement grade part designed for reliable operation in Chevrolet Sonic vehicles. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation for detailed warranty information.
