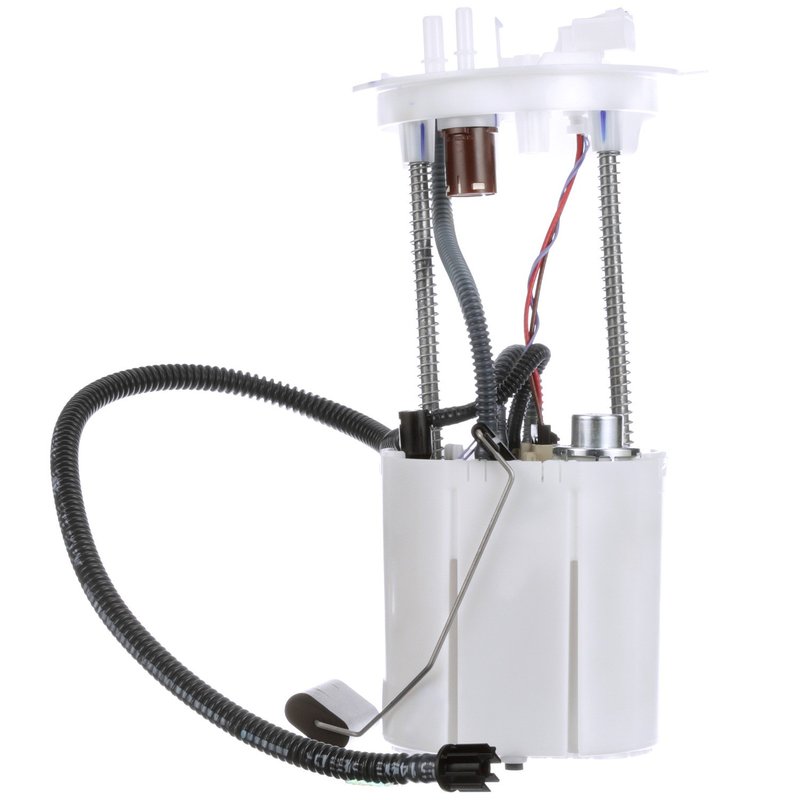

Delphi FG1742 Fuel Pump Module Assembly

Delphi FG1742 Fuel Pump Module Assembly Overview

The Delphi FG1742 fuel pump module assembly is designed for reliable fuel delivery in select Cadillac and Saab vehicles. Engineered as an in-tank electric fuel pump, it supports gas fuel systems with integrated components to maintain consistent pressure and flow.

• Compatible with Cadillac SRX and Saab 9-4X models
• 12-volt electric pump with a maximum pressure of 85 psi
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet with 0.375 inch diameter
• Regulator and gasket/seal included for proper installation
• Blade-type male terminals, 4-terminal configuration
• Average flow rating of 39 liters per hour and average current draw of 10 amps
• Standard replacement grade for dependable performance

Technical Details and Features

The FG1742 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring secure fuel flow connections. The assembly includes a regulator to maintain system pressure at 50 psi, with a maximum pressure rating of 85 psi for safety and efficiency. The pump uses blade-type male terminals with four connections, supporting stable electrical performance. Additionally, the fuel level sender assembly with float arm is integrated, providing accurate fuel level readings for the vehicle’s dashboard.

Applications and Problem Resolution

• Restores proper fuel delivery in Cadillac SRX and Saab 9-4X vehicles
• Resolves fuel pressure inconsistencies and engine stalling issues
• Replaces faulty or worn fuel pump modules causing poor fuel economy
• Addresses inaccurate fuel gauge readings with included sender assembly
• Eliminates fuel delivery interruptions due to clogged strainers or damaged components

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation. Ensure the fuel tank is properly drained and depressurized before removal. The included gasket and seal should be replaced during installation to prevent leaks. Verify electrical connections match the blade-type male terminals and confirm the quick connect outlets are securely attached. Follow vehicle-specific service manuals for torque specifications and safety precautions.

Quality Assurance and Warranty

The Delphi FG1742 is a standard replacement grade fuel pump module assembly, manufactured to meet OEM specifications for Cadillac and Saab vehicles. It undergoes rigorous testing to ensure consistent fuel flow and pressure regulation. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties to support product reliability and customer confidence.
