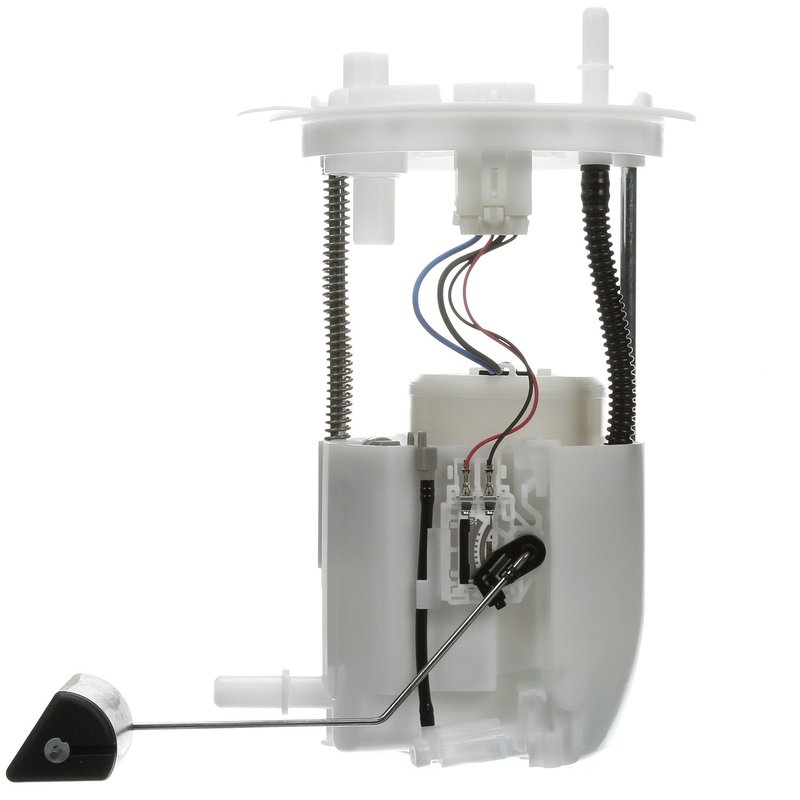

Delphi FG1754 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1754 fuel pump module assembly is designed for reliable fuel delivery in Ford Flex and Lincoln MKT vehicles. This in-tank electric fuel pump ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Ford Flex and Lincoln MKT models
• 12.0-volt electric pump with a maximum pressure of 68 psi
• Includes internal fuel level sender assembly and strainer
• Quick connect outlet with 0.375-inch outside diameter
• Blade-type male terminals with four connections

Technical Specifications and Features

The Delphi FG1754 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type, facilitating efficient fuel flow with an average flow rating of 40 liters per hour. The pump maintains a system pressure of 65 psi, with a maximum pressure rating of 68 psi, ensuring stable fuel delivery under various driving conditions. The assembly includes a fuel level sender with resistance values ranging from 10 ohms (full) to 180 ohms (empty), providing accurate fuel gauge readings. The four blade-type male terminals support secure electrical connections, and the pump draws an average current of 8 amps during operation.

Applications and Problem Resolution

This fuel pump module assembly is specifically compatible with Ford Flex and Lincoln MKT vehicles, making it a suitable replacement for worn or failing fuel pumps in these models. It addresses several common fuel system issues, including:

• Inconsistent fuel pressure causing engine hesitation or stalling
• Fuel pump failure leading to no-start conditions
• Erratic fuel level readings due to faulty sender units
• Fuel delivery interruptions from clogged strainers
• Electrical connection problems affecting pump operation

Installation Notes and Tips

Installation of the Delphi FG1754 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure to prevent leaks. Since the assembly does not include a gasket or lock ring, reuse the original components or source replacements as needed. Follow the included instruction sheet carefully for proper installation and calibration of the fuel level sender.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Ford and Lincoln vehicles. The product includes a fuel pump module with float arm and an instruction sheet for installation guidance. While specific warranty details are not provided here, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the parts distributor or installer prior to purchase.
