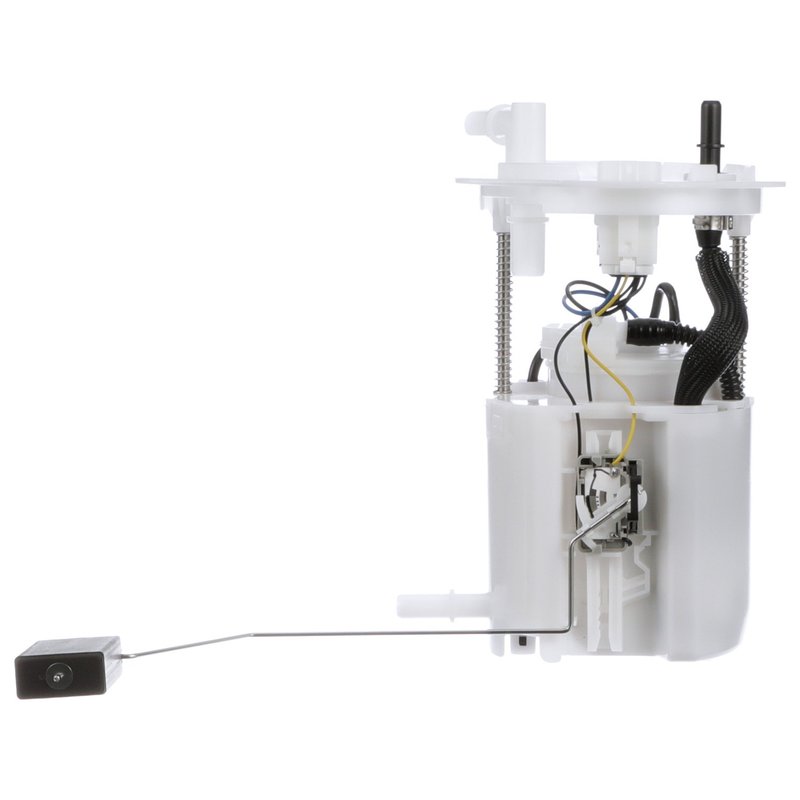

Delphi FG1756 Fuel Pump Module Assembly - Right

Reliable Fuel Pump Module Assembly for Ford and Lincoln Vehicles

The Delphi FG1756 fuel pump module assembly is designed to provide consistent fuel delivery for select Ford and Lincoln models. Engineered for in-tank installation, this electric fuel pump module ensures efficient fuel flow and accurate fuel level readings for vehicles like the Ford Explorer, Flex, and Lincoln MKT.

• 12.0 Volt electric fuel pump with integrated regulator
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connections
• Designed for in-tank installation with an average flow rating of 61
• Compatible with Ford Explorer, Flex, and Lincoln MKT models
• Standard replacement grade with system pressure of 55 psi

Detailed Features and Specifications

The Delphi FG1756 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer at the inlet to prevent debris from entering the fuel system, enhancing longevity and performance. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. The outlet uses a quick connect type with two outlets, each having an outside diameter of 0.375 inches, facilitating straightforward installation and secure fuel line connections.

Electrical connections are made via four male blade terminals, ensuring reliable power delivery. The pump’s resistance ranges from 180 ohms when empty to 10 ohms when full, with an average current draw of 10 amps. This electric pump maintains a system pressure of 55 psi, suitable for the fuel delivery requirements of the specified Ford and Lincoln models.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Explorer
• Ford Flex
• Lincoln MKT

It is designed to replace the original in-tank fuel pump module, addressing issues related to fuel delivery and fuel level sensing.

Common Issues Addressed by the Delphi FG1756

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pump noise or failure from clogged internal strainer
• Reduced fuel pressure affecting engine performance
• Electrical connection problems with worn or damaged terminals

Installation Notes and Tips

Installation of the Delphi FG1756 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Carefully disconnect the four blade terminals and quick connect fuel outlets, noting their positions for reassembly. Replace the fuel pump module with the new assembly, making sure the internal strainer and fuel level sender are properly positioned. Verify all connections are secure and test the fuel system for leaks and proper operation before reassembling the vehicle.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The FG1756 is a standard replacement grade part backed by Delphi’s quality standards. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure customer confidence in the product.
